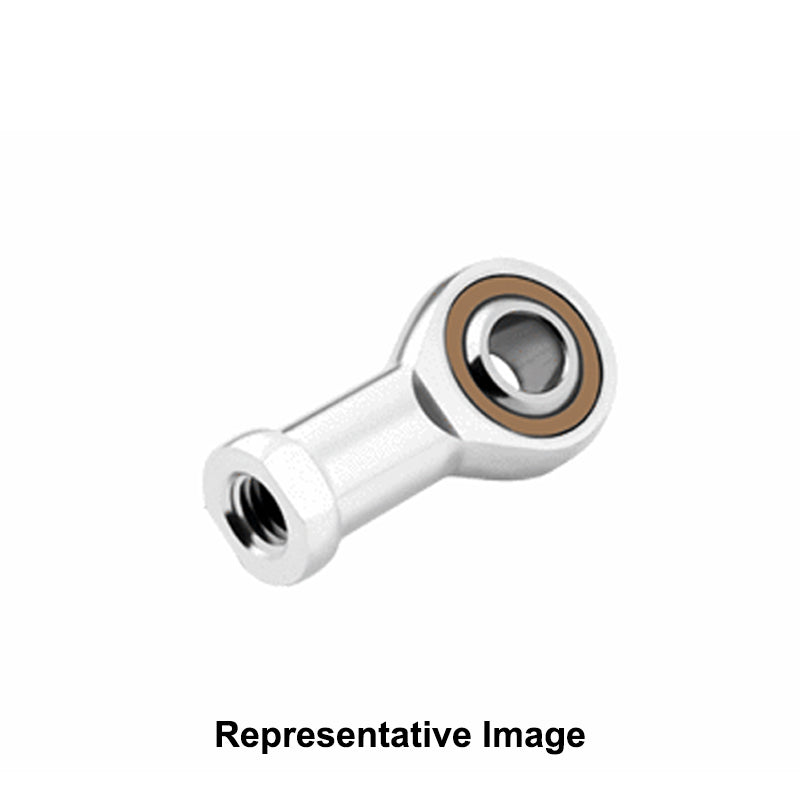

Chiavette CFX20PN Right Hand Stainless Steel / Bronze Lined Plain Female Rod End for Pneumatic Cylinders 20mm Bore M20x1.5 Thread - Allow 2-3 Days

Chiavette (Tescubal) Stainless Steel Rod Ends: Stainless steel rod ends are high resistance and precision products, which are made according to ISO 12240-4 K series and ISO 12240-1 K series. They are maintenance-free and employ a coupling of tempered, polished stainless steel (inner ring) on sintered bronze (outer ring) impregnated with a high-potency lubricating fluid, which guarantees constant lubrication. The outer ring is cold-formed on the inner ring, to guarantee 100% surface contact, so that it can resist high loads and speeds, keeping the right lubrication during operation.
Benefits: Maintenance-free operation, high load capacity and reduced wear during operation, products are capable of functioning in the presence of or when immersed in oil, particularly suitable in case of oscillation movements, complete revolutions, high speeds

These products are certified to CETOP standards (ISO 8139), ensuring quality and compatibility with European hydraulic systems. CETOP, the European Committee for Hydraulic and Pneumatic Transmission, sets rigorous standards for fluid power components, guaranteeing reliability and performance in industrial applications

Brand / Quality:

Chiavette - High Quality

Thread Size:

M20x1.5

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

20mm

Material:

Bronze Lined
