SKU: C-UCFS314D1-NTN

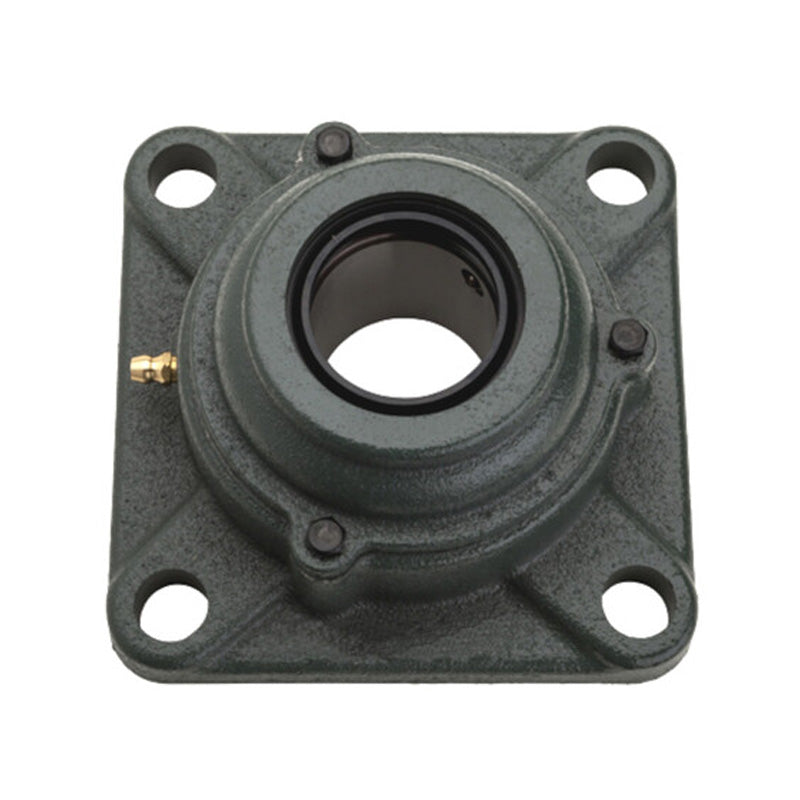

NTN C-UCFS314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFS314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
€318,42
ex VAT
Regular price
Sale price
€318,42
ex VAT
In stock
Price Break
5+
€315,24
10+
€302,50
20+
€296,13
50+
€286,58
100+
€280,21
500+
€264,29
1000+
€222,89
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFS
- Bolt Hole Centres:
- 178mm
Technical
Technical
| Shaft diameter | 70mm |
|---|---|
| L | 226mm |
| J | 178mm |
| A<sub>2</sub> | 18mm |
| N | 25mm |
| A<sub>3</sub> | 18mm |
| A<sub>1</sub> | 25mm |
| H<sub>3</sub> | 185mm |
| B | 78mm |
| S | 33mm |
| Fixing bolt | M22 |
| A<sub>5</sub> | 106mm |
| Mass | 12 kg |
