SKU: BR.142216
BR142216 Machined Type Imperial Needle Roller Bearing Without Inner Ring 7/8x1-3/8x1 inch
BR142216 Machined Type Imperial Needle Roller Bearing Without Inner Ring 7/8x1-3/8x1 inch
Regular price
€14,97
ex VAT
Regular price
Sale price
€14,97
ex VAT
Equivalent to: HJ142216 HJ-142216 MR14 MR-14 SJ7174 NCS1416
In stock
Price Break
10+
€13,32
19+
€12,57
29+
€12,43
39+
€12,28
49+
€12,13
74+
€11,98
99+
€11,23
199+
€11,08
249+
€10,93
499+
€10,78
999+
€10,48
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ142216 HJ-142216 MR14 MR-14 SJ7174 NCS1416
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical

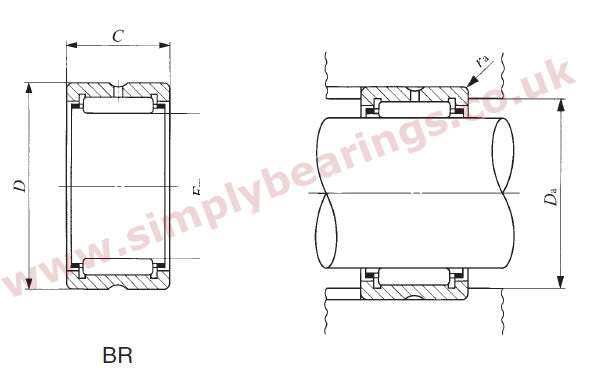

| Fw | 7/8 inch |
|---|---|
| D | 1-3/8 inch |
| C | 1 inch |
| Dynamic Load Cor | 29100 N |
| Static Load Cr | 36800 N |
| Weight | 0.0845 kg |
