SKU: BK3520-NTN

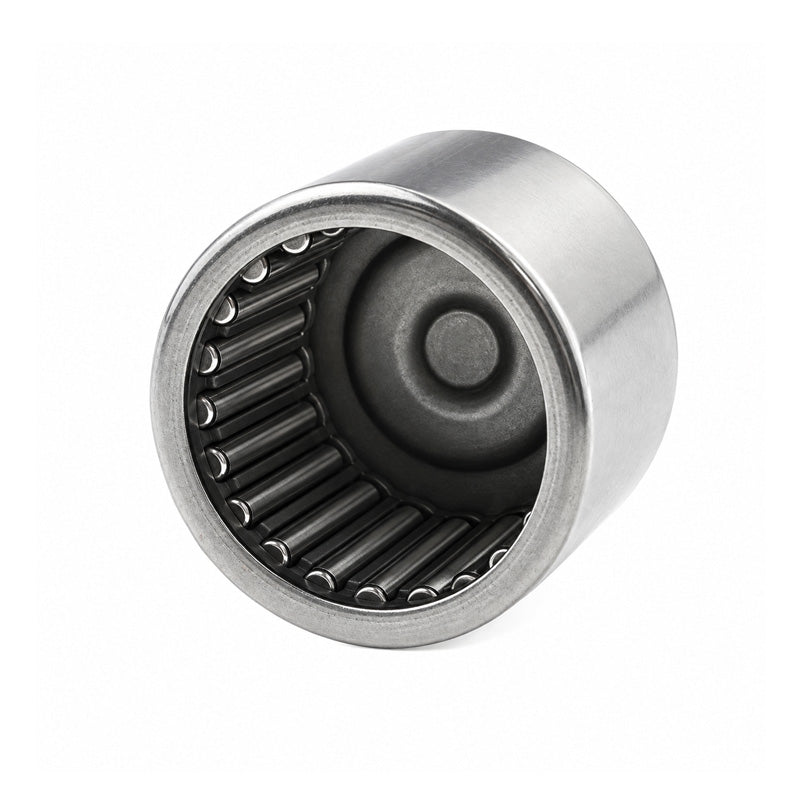

NTN BK3520 Drawn Cup Needle Roller Bearing with Closed End 35x42x20mm - Allow 2-3 Days

NTN BK3520 Drawn Cup Needle Roller Bearing with Closed End 35x42x20mm - Allow 2-3 Days
Regular price €7,74 ex VAT
Regular price Sale price €7,74 ex VAT
Sale Sold out

In stock

Price Break
3+ €6,55
4+ €6,29
9+ €6,16
19+ €5,96
49+ €5,83
99+ €5,49
499+ €4,63
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 35mm
D - Outside diameter 42mm
C - Width of bearing, drawn cup or outer ring 20mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Cr - Dynamic load rating 24.8 kN
C0r - Static load rating 47.5 kN
N - Grease lubrication limit speed 4700 tr/min
N - Oil lubrication limit speed 7000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
