SKU: BK3020-NTN

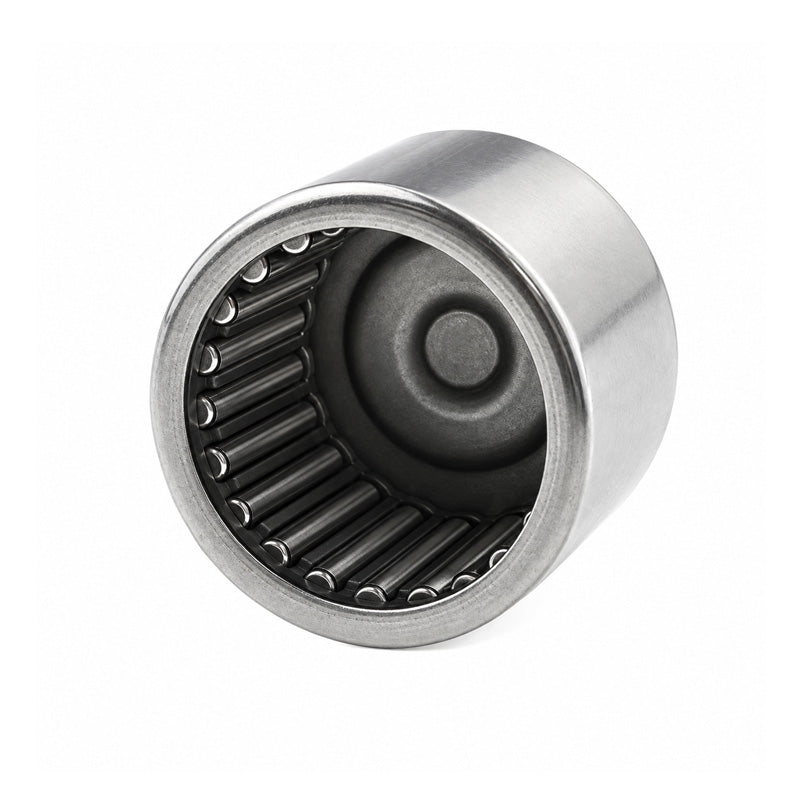

NTN BK3020 Drawn Cup Needle Roller Bearing with Closed End 30x37x20mm - Allow 2-3 Days

NTN BK3020 Drawn Cup Needle Roller Bearing with Closed End 30x37x20mm - Allow 2-3 Days
Regular price €6,45 ex VAT
Regular price Sale price €6,45 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,46
4+ €5,24
9+ €5,13
19+ €4,97
49+ €4,86
99+ €4,58
499+ €3,86
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 30mm
D - Outside diameter 37mm
C - Width of bearing, drawn cup or outer ring 20mm
C1 - Max drawn cup closed end thickness 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR25X30X20.5
Cr - Dynamic load rating 22.3 kN
C0r - Static load rating 39.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
