SKU: BK2216-EU

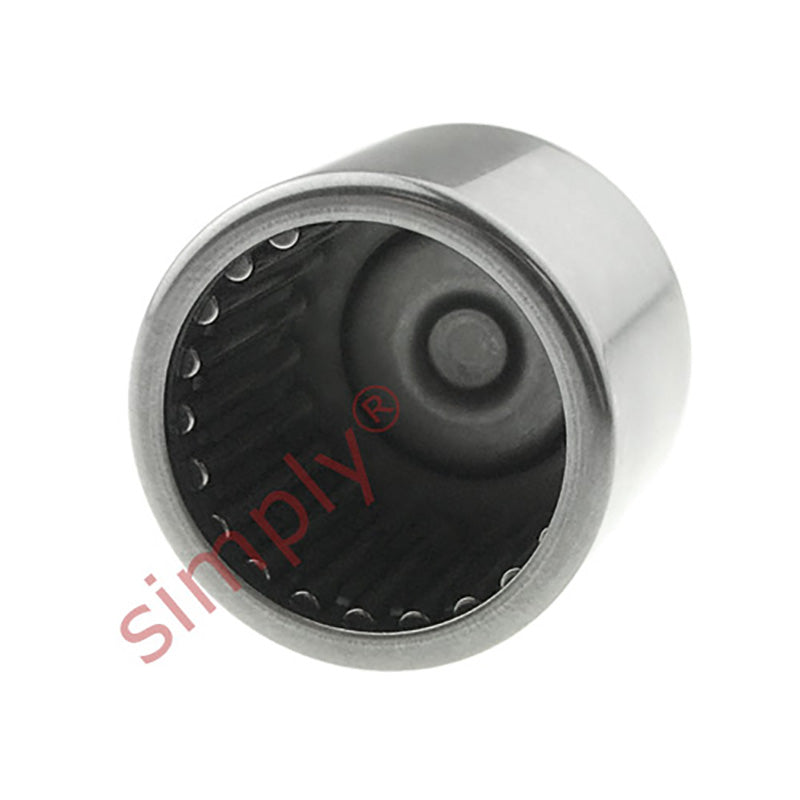

BK2216 Budget Drawn Cup Needle Roller Bearing with One Closed End 22x28x16mm
BK2216 Budget Drawn Cup Needle Roller Bearing with One Closed End 22x28x16mm
Regular price
€8,55
ex VAT
Regular price
Sale price
€8,55
ex VAT
In stock
Price Break
10+
€6,51
19+
€6,15
29+
€6,08
39+
€6,00
49+
€5,93
74+
€5,86
99+
€5,49
199+
€5,42
249+
€5,34
499+
€5,27
999+
€5,12
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 16mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 16mm |
| Dynamic load C | 13000 N |
| Static load Co | 22400 N |
| Fatigue load limit Pu | 2600 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| C1 | 13.3mm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x16 |
| Seal | G/SD22x28x4 |
| Weight | 24 g |
