SKU: BK1816-EU

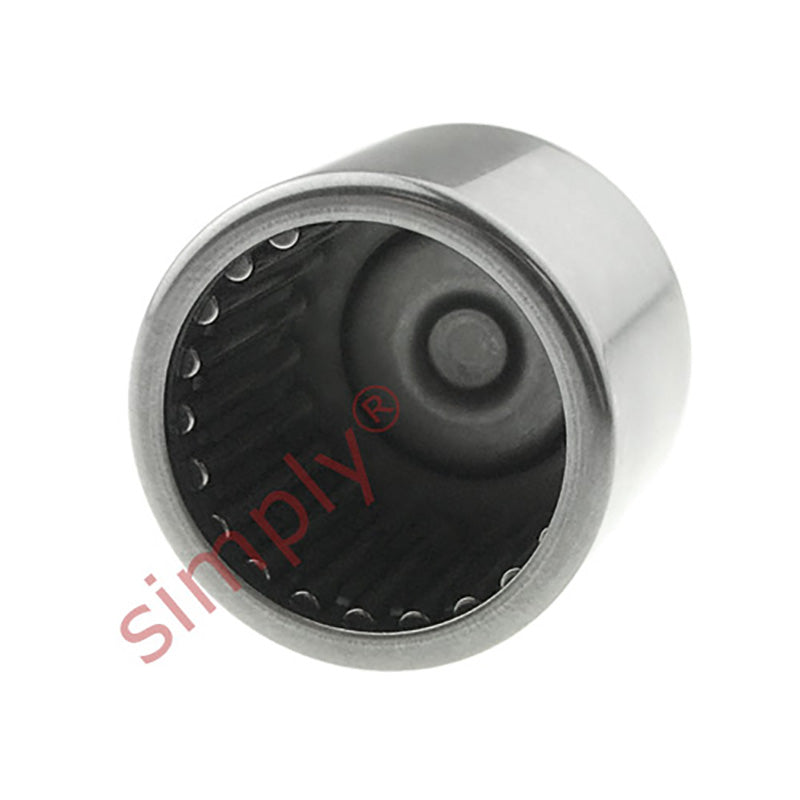

BK1816 Budget Drawn Cup Needle Roller Bearing with One Closed End 18x24x16mm
BK1816 Budget Drawn Cup Needle Roller Bearing with One Closed End 18x24x16mm
Regular price
€6,74
ex VAT
Regular price
Sale price
€6,74
ex VAT
In stock
Price Break
10+
€6,00
19+
€5,66
29+
€5,59
39+
€5,53
49+
€5,46
74+
€5,39
99+
€5,06
199+
€4,99
249+
€4,92
499+
€4,85
999+
€4,72
Couldn't load pickup availability
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 24mm |
| C | 16mm |
| Dynamic load C | 11200 N |
| Static load Co | 17600 N |
| Fatigue load limit Pu | 2040 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| C1 | 13.3mm |
| r1r2 min | 0.8mm |
| Da max | 19mm |
| ra max | 0.8mm |
| Inner ring | IR15x18x16.5 |
| Seal | G/SD18x24x3 |
| Weight | 20 g |
