SKU: BK1312-MB

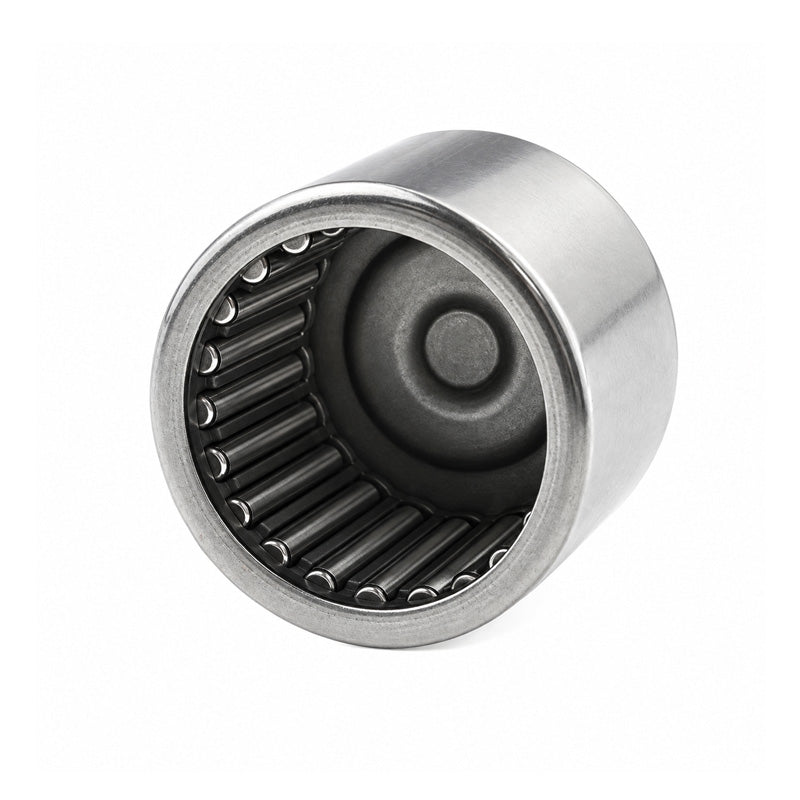

Major Brand BK1312 Drawn Cup Type Needle Roller Bearing with One Closed End 13x19x12mm
Major Brand BK1312 Drawn Cup Type Needle Roller Bearing with One Closed End 13x19x12mm
Regular price
€7,26
ex VAT
Regular price
Sale price
€7,26
ex VAT
In stock
Price Break
10+
€5,53
19+
€5,22
29+
€5,16
39+
€5,09
49+
€5,03
74+
€4,97
99+
€4,66
199+
€4,60
249+
€4,53
499+
€4,47
999+
€4,35
Description
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 13mm
- Outside Diameter:
- 19mm
- Width:
- 12mm
Technical
Technical
| Fw | 13mm |
|---|---|
| D | 19mm |
| C | 12mm |
| Dynamic load | 6600 N |
| Static load | 8000 N |
| Fatigue load limit Pu | 915 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| C1 | 9.3mm |
| r1r2 min | 0.8mm |
| Da max | 14mm |
| ra max | 0.8mm |
| Inner ring | IR10x13x12.5 |
| Seal | G/SD13x19x3 |
| Weight | 11 g |
