SKU: BK1212-EU

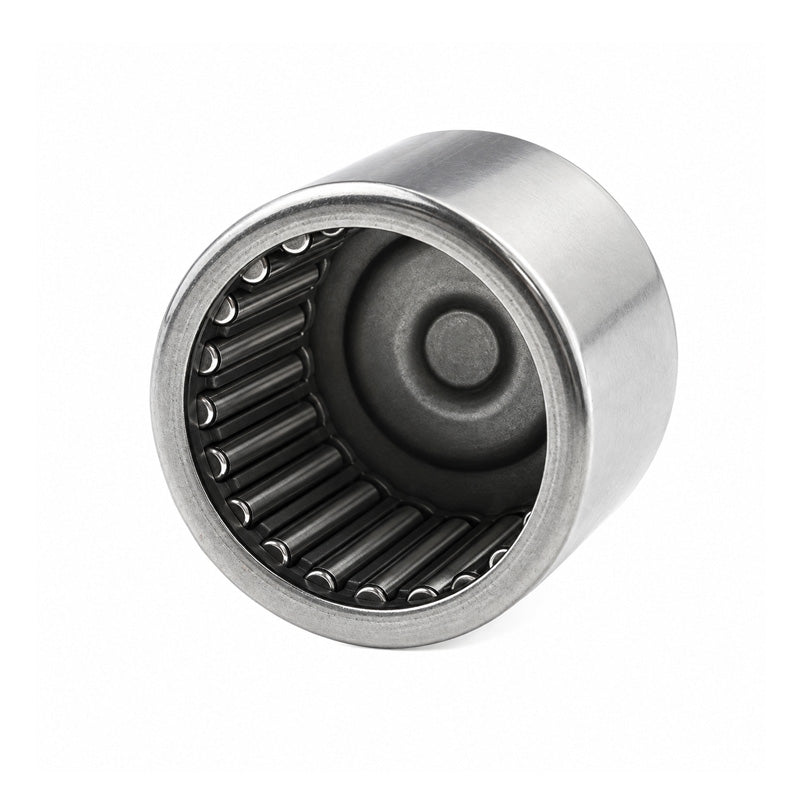

BK1212 Budget Drawn Cup Needle Roller Bearing with One Closed End 12x18x12mm
BK1212 Budget Drawn Cup Needle Roller Bearing with One Closed End 12x18x12mm
Regular price
€3,33
ex VAT
Regular price
Sale price
€3,33
ex VAT
In stock
Price Break
10+
€2,54
19+
€2,39
29+
€2,37
39+
€2,34
49+
€2,31
74+
€2,28
99+
€2,14
199+
€2,11
249+
€2,08
499+
€2,05
999+
€2,00
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 12mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 18mm |
| C | 12mm |
| Dynamic load C | 6270 N |
| Static load Co | 7350 N |
| Fatigue load limit Pu | 850 N |
| Speed in grease | 14000 rpm |
| Speed in oil | 20000 rpm |
| C1 | 9.3mm |
| r1r2 min | 0.8mm |
| Da max | 13mm |
| ra max | 0.8mm |
| Inner ring | IR8x12x12.5 |
| Seal | G/SD12x18x3 |
| Weight | 10 g |
