SKU: BK1210-NTN

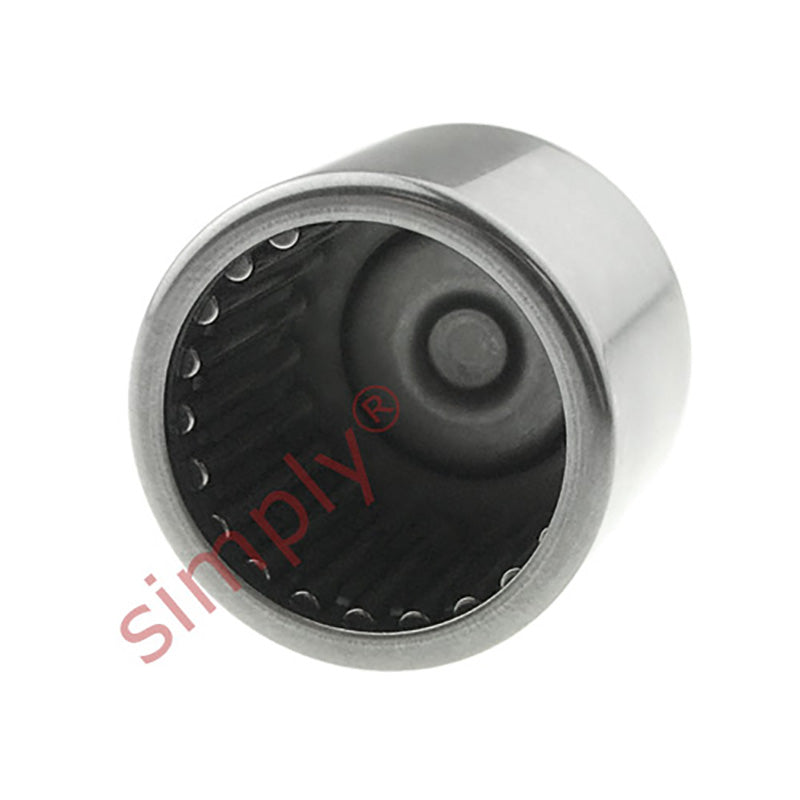

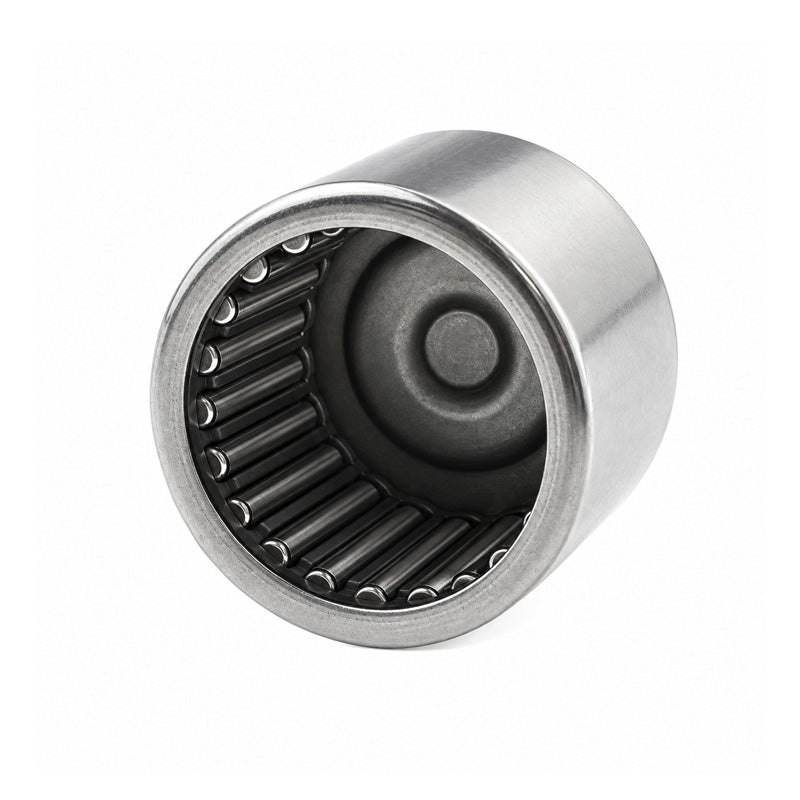

NTN BK1210 Drawn Cup Needle Roller Bearing with Closed End 12x16x10mm - Allow 2-3 Days

NTN BK1210 Drawn Cup Needle Roller Bearing with Closed End 12x16x10mm - Allow 2-3 Days
Regular price €5,59 ex VAT
Regular price Sale price €5,59 ex VAT
Sale Sold out

In stock

Price Break
3+ €4,73
4+ €4,54
9+ €4,45
19+ €4,30
49+ €4,21
99+ €3,97
499+ €3,35
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 12mm
D - Outside diameter 16mm
C - Width of bearing, drawn cup or outer ring 10mm
C1 - Max drawn cup closed end thickness 1.6mm
Lubrication hole on outer ring? No
Inner ring reference IR8X12X10.5
Cr - Dynamic load rating 5.05 kN
C0r - Static load rating 6.25 kN
N - Grease lubrication limit speed 13000 tr/min
N - Oil lubrication limit speed 20000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
