SKU: BK0912-NTN

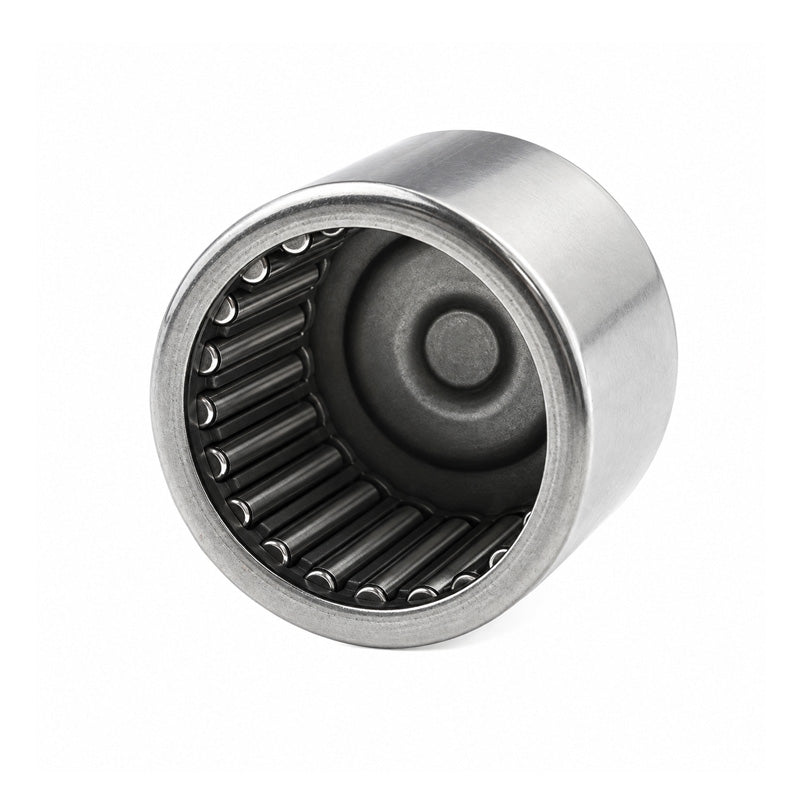

NTN BK0912 Drawn Cup Needle Roller Bearing with Closed End 9x13x12mm
NTN BK0912 Drawn Cup Needle Roller Bearing with Closed End 9x13x12mm
Regular price
€5,59
ex VAT
Regular price
Sale price
€5,59
ex VAT
In stock
Price Break
3+
€4,25
4+
€4,02
9+
€3,97
19+
€3,92
49+
€3,87
99+
€3,82
499+
€3,59
999+
€3,54
1999+
€3,49
2999+
€3,44
4999+
€3,35
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 13mm
- Width:
- 12mm
Technical
Technical
| Fw - Under rollers diameter | 9mm |
|---|---|
| D - Outside diameter | 13mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| C1 - Max drawn cup closed end thickness | 1.6mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR6X9X12 |
| Cr - Dynamic load rating | 5.65 kN |
| C0r - Static load rating | 6.65 kN |
| N - Grease lubrication limit speed | 18000 tr/min |
| N - Oil lubrication limit speed | 27000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
