SKU: BF30-SKF

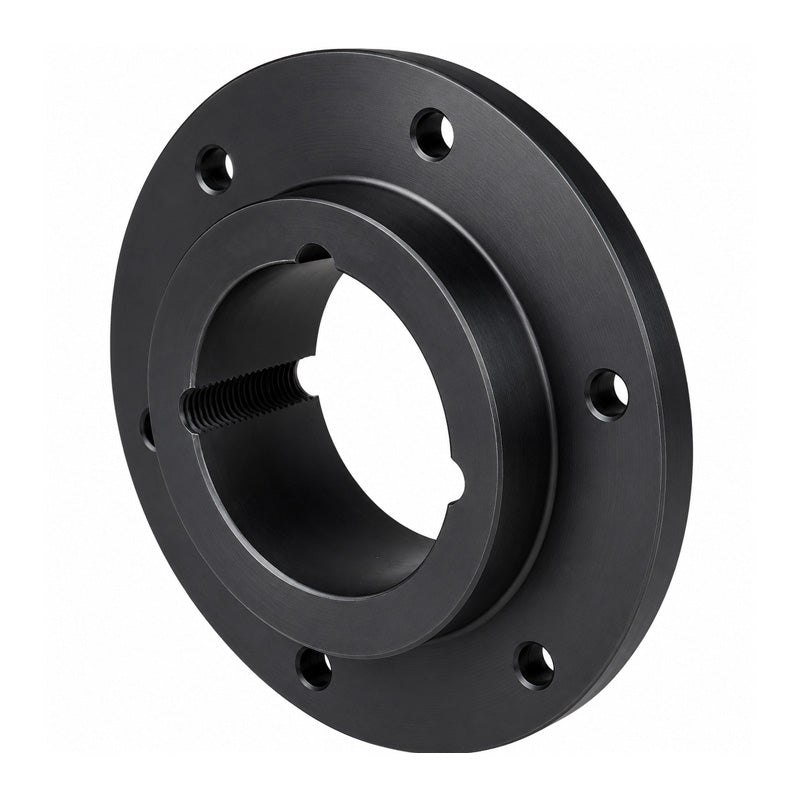

SKF BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKF BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Regular price
€83,97
ex VAT
Regular price
Sale price
€83,97
ex VAT
In stock
Price Break
10+
€74,73
19+
€70,53
29+
€69,70
39+
€68,86
49+
€68,02
74+
€67,18
99+
€62,98
199+
€62,14
249+
€61,30
499+
€60,46
999+
€58,78
Couldn't load pickup availability
Description
Description
Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 220mm
- Width:
- 50mm
Technical
Technical
| Hub Reference | BF30 |
|---|---|
| Bush Number | 3020 |
| A | 220mm |
| B | 165mm |
| C | 190mm |
| D | 50mm |
| E | 11.5mm |
| F | 146mm |
| G | 147mm |
| H | 20mm |
| J | 6 x 13.0mm |
