SKU: BE20-INA

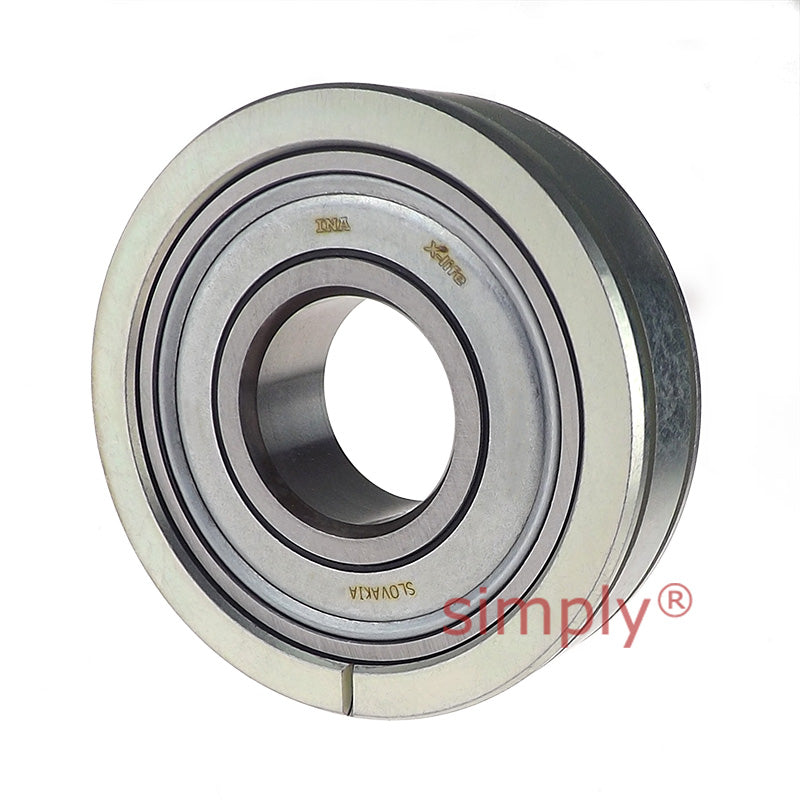

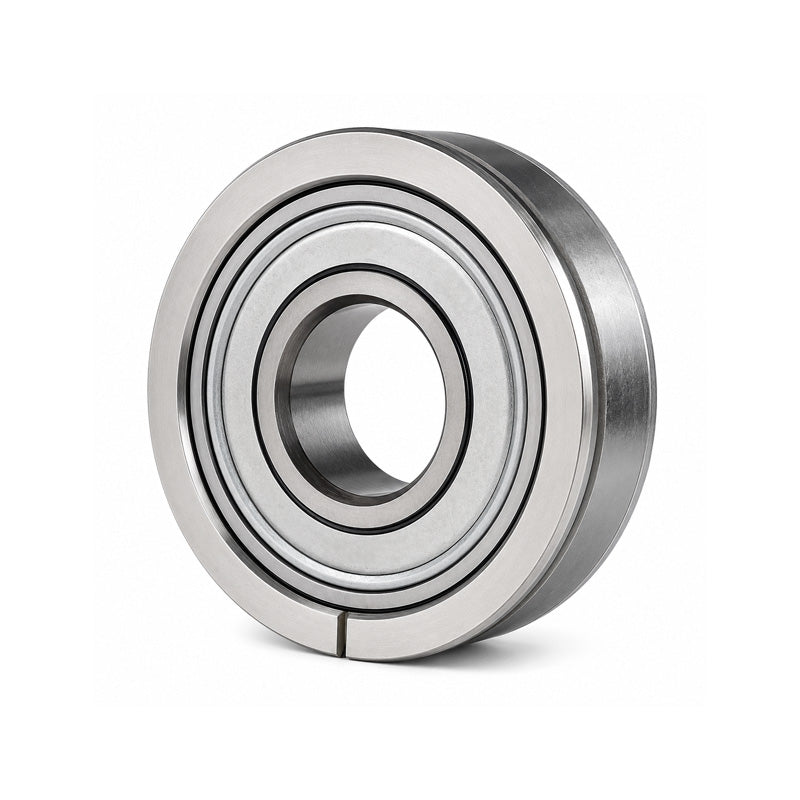

INA BE20 Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals 20x55x16mm
INA BE20 Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals 20x55x16mm
Regular price
€36,55
ex VAT
Regular price
Sale price
€36,55
ex VAT
In stock
Price Break
3+
€27,84
5+
€26,28
10+
€25,96
15+
€25,65
20+
€25,34
30+
€25,02
40+
€23,46
50+
€23,15
60+
€22,83
75+
€22,52
100+
€21,90
Description
Description
|
INA BE Series Inserts: Bearing insert with parallel bore with steel aligning ring and P seals. These radial insert ball bearings have an axially split outer ring as an aligning ring. They are mounted in cylindrical bores and compensate for static misalignment of the shaft up to ±5 degrees. Due to the annular slots in the outer ring to DIN 616, they are highly suitable for sheet metal constructions. In this case, they are axially located using snap rings to DIN 5 417. The inner ring is located on the shaft by a location fit. The aligning ring has a Corrotect® coating and is thus protected against fretting corrosion. These bearings cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 55mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 55mm |
| A | 16mm |
| B | 14mm |
| b | 1.35mm Tolerance: +0.3 |
| C1 | 11.2mm Tolerance: +0.2 |
| D1 | 52.6mm Tolerance: -0.5 |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Designation of bearing | 204-NPP-B |
| Weight | 0.19 kg |
