SKU: BB-RT-01-60-ES

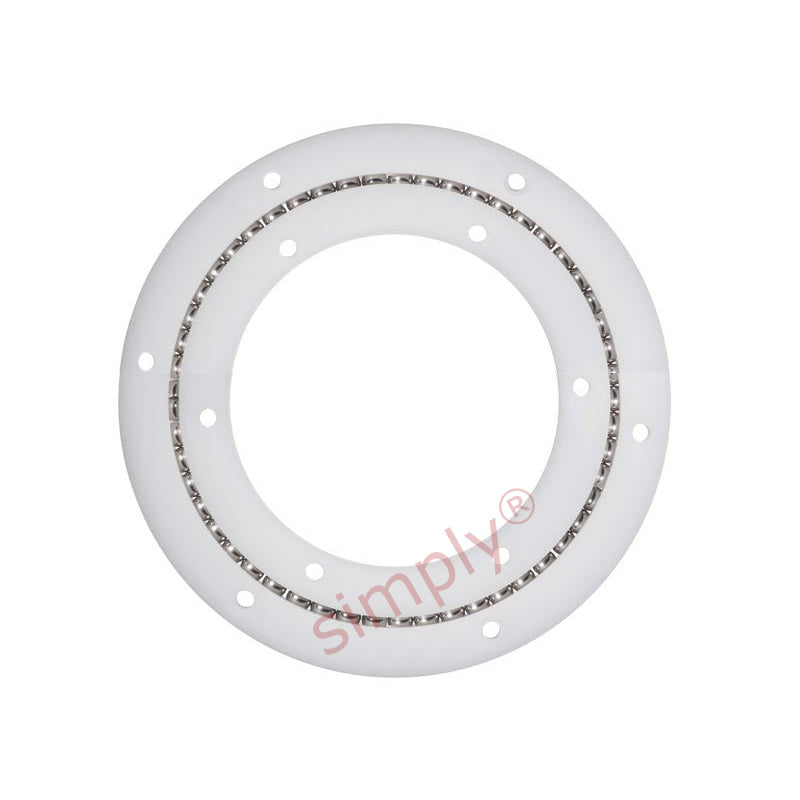

xiros xirodur BBRT0160ES Slewing Ring Bearing with Stainless Steel Balls 60x100x17.5mm
xiros xirodur BBRT0160ES Slewing Ring Bearing with Stainless Steel Balls 60x100x17.5mm
Regular price
€235,30
ex VAT
Regular price
Sale price
€235,30
ex VAT
In stock
Price Break
5+
€179,20
9+
€169,13
29+
€167,12
49+
€165,11
99+
€163,09
199+
€161,08
299+
€151,01
399+
€149,00
499+
€146,98
749+
€144,97
999+
€140,94
Description
Description
|
IGUS xiros® xirodur® B180 Slewing Ring Bearings: The combination of stainless steel balls with polymer inner and outer races results in maintenance-free dry operation with low coefficients of friction. The xiros® slewing ring bearing can be used in temperatures of up to +80 deg C. Benefits: Lubrication- and maintenance-free, low weight, corrosion-resistant, washable, cost-effective, electrically insulating |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 100mm
- Width:
- 17.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| D | 100mm |
|---|---|
| D1 | 90mm |
| d | 60mm |
| d1 | 68mm |
| H | 17.5mm |
| h | 2.5mm |
| T | 60 degrees |
| K1 | 3.3mm |
| K2 | 3.3mm |
| Static load capacity | 1250 N |
| Dynamic load capacity | 250 N |
| Max speed | 1500 rpm |
| Race | B180 |
| Ball material | Stainless Steel |
