SKU: BAM.218

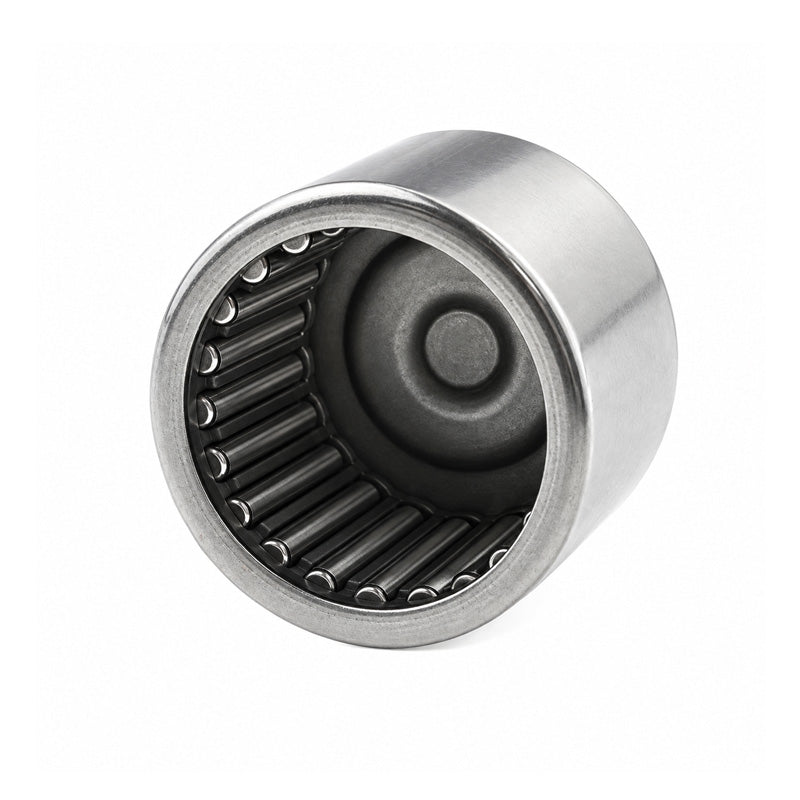

BAM218 Imperial Closed End Needle Roller Bearing 1-5/16x1-5/8x1/2 inch
BAM218 Imperial Closed End Needle Roller Bearing 1-5/16x1-5/8x1/2 inch
Regular price
€7,97
ex VAT
Regular price
Sale price
€7,97
ex VAT
In stock
Price Break
10+
€7,09
19+
€6,69
29+
€6,62
39+
€6,54
49+
€6,46
74+
€6,38
99+
€5,98
199+
€5,90
249+
€5,82
499+
€5,74
999+
€5,58
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 1-5/16 inch |
|---|---|
| D | 1-5/8 inch |
| C | 1/2 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 11100 N |
| Static Load C0 | 15800 N |
| Weight | 35 g |
