SKU: BAM.2012

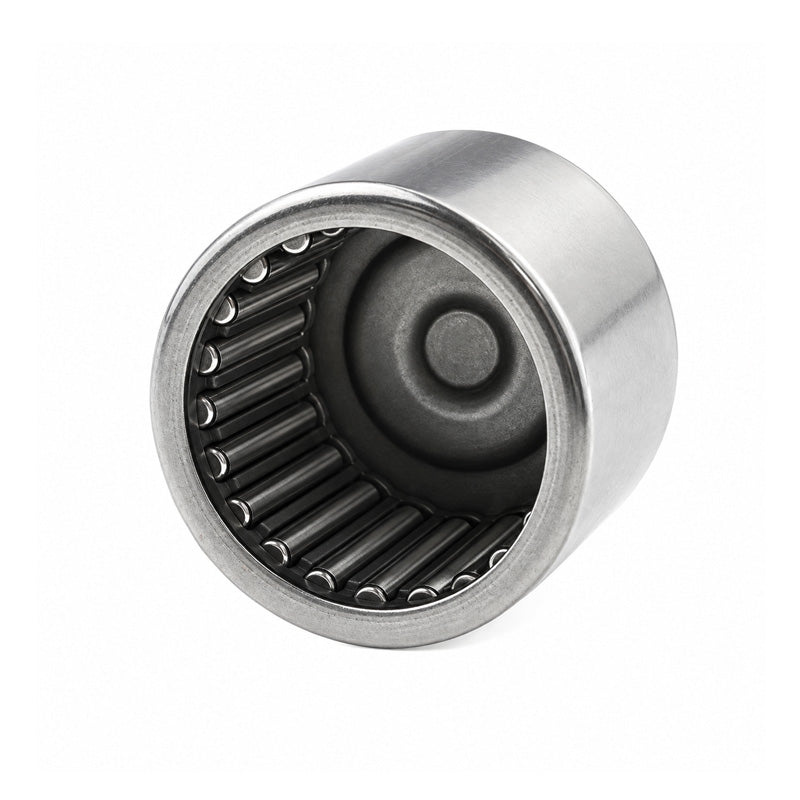

BAM2012 Imperial Closed End Needle Roller Bearing 1-1/4x1-1/2x3/4 inch
BAM2012 Imperial Closed End Needle Roller Bearing 1-1/4x1-1/2x3/4 inch
Regular price
€9,40
ex VAT
Regular price
Sale price
€9,40
ex VAT
Equivalent to: MJ20121 BCE2012
In stock
Price Break
10+
€8,37
19+
€7,90
29+
€7,80
39+
€7,71
49+
€7,61
74+
€7,52
99+
€7,05
199+
€6,96
249+
€6,86
499+
€6,77
999+
€6,58
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ20121 BCE2012
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-1/4 inch |
|---|---|
| D | 1-1/2 inch |
| C | 3/4 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 15700 N |
| Static Load C0 | 29600 N |
| Weight | 37 g |
