SKU: BAM.1710

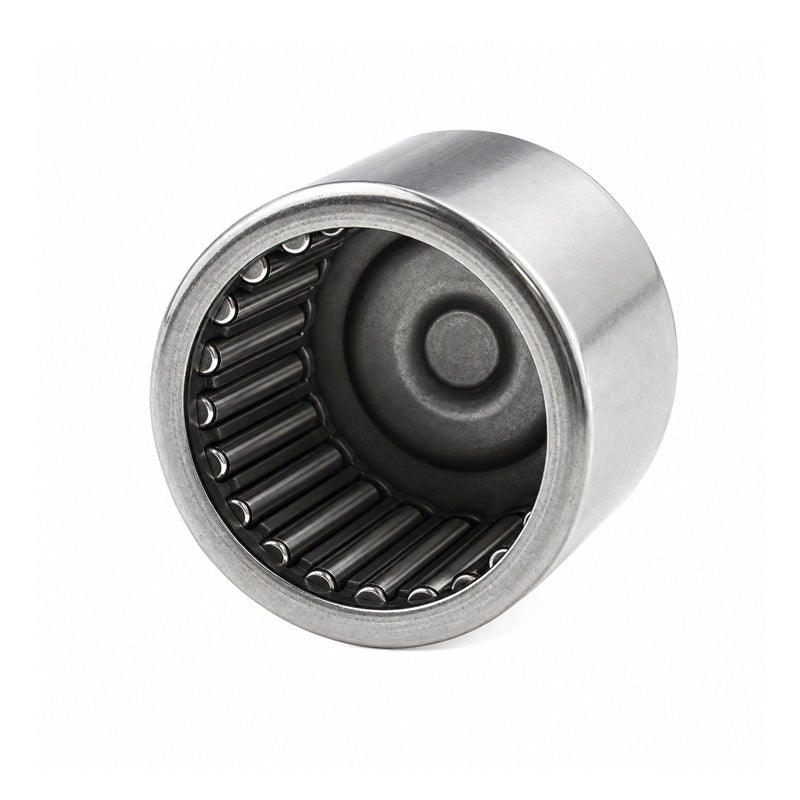

BAM1710 Imperial Closed End Needle Roller Bearing 1-1/16x1-5/16x5/8 inch
BAM1710 Imperial Closed End Needle Roller Bearing 1-1/16x1-5/16x5/8 inch
Regular price
€8,06
ex VAT
Regular price
Sale price
€8,06
ex VAT
In stock
Price Break
10+
€7,17
19+
€6,77
29+
€6,69
39+
€6,61
49+
€6,53
74+
€6,45
99+
€6,05
199+
€5,96
249+
€5,88
499+
€5,80
999+
€5,64
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Outside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 1-1/16 inch |
|---|---|
| D | 1-5/16 inch |
| C | 5/8 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 11600 N |
| Static Load C0 | 19200 N |
| Weight | 26.5 g |
