SKU: BAM.126

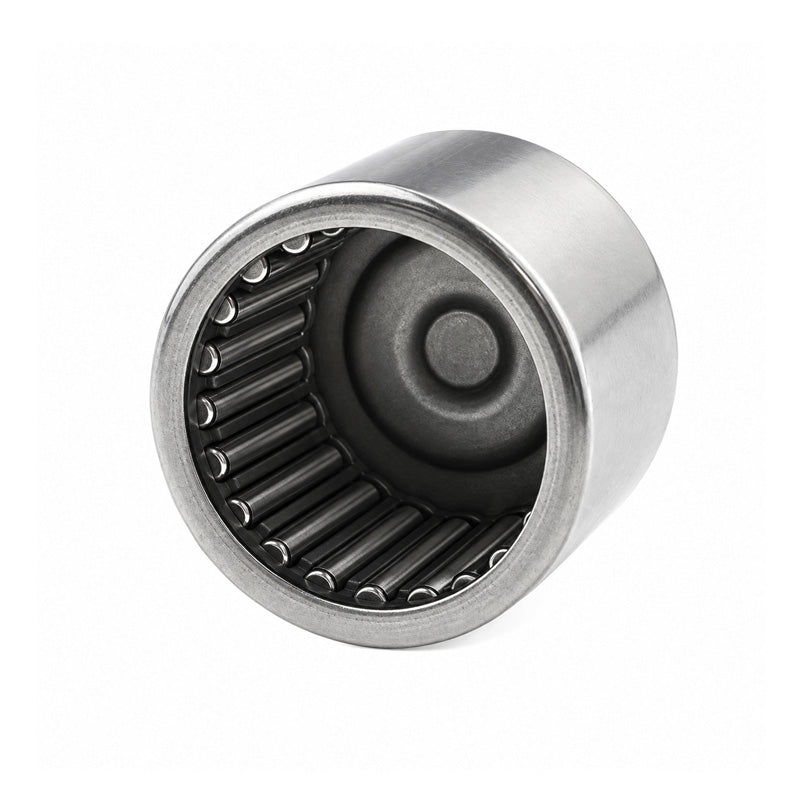

BAM126 Imperial Closed End Needle Roller Bearing 3/4x1x3/8 inch
BAM126 Imperial Closed End Needle Roller Bearing 3/4x1x3/8 inch
Regular price
€5,15
ex VAT
Regular price
Sale price
€5,15
ex VAT
In stock
Price Break
10+
€4,58
19+
€4,33
29+
€4,27
39+
€4,22
49+
€4,17
74+
€4,12
99+
€3,86
199+
€3,81
249+
€3,76
499+
€3,71
999+
€3,61
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Fw | 3/4 inch |
|---|---|
| D | 1 inch |
| C | 3/8 inch |
| t2 max | 1.3mm |
| Dynamic Load C | 5040 N |
| Static Load C0 | 5850 N |
| Weight | 11.7 g |
