SKU: AXK80105-MB

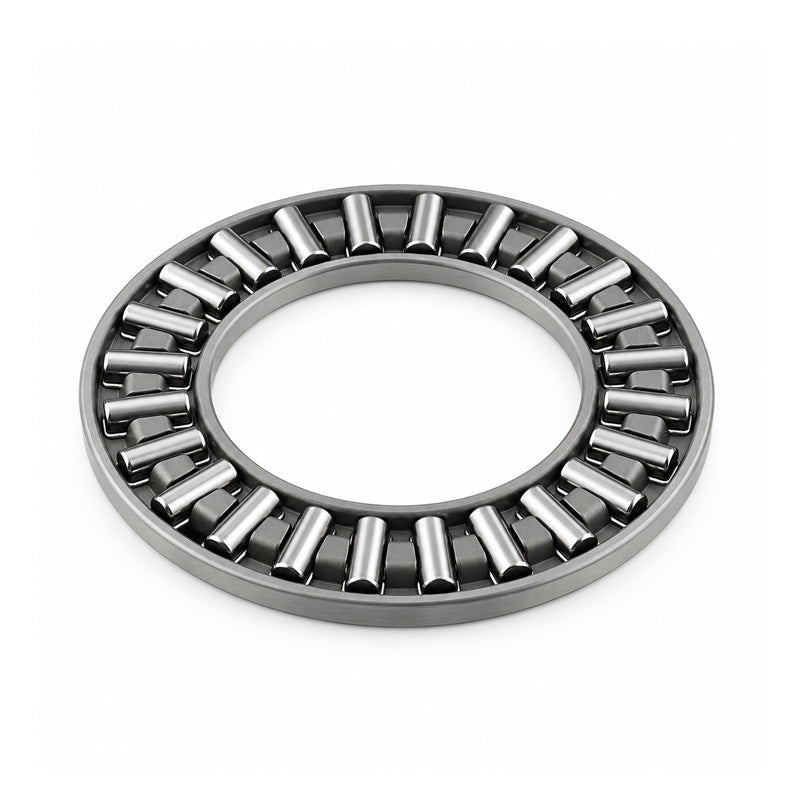

Major Brand AXK80105 Needle Roller Cage 80x105x4mm
Major Brand AXK80105 Needle Roller Cage 80x105x4mm
Regular price
€11,99
ex VAT
Regular price
Sale price
€11,99
ex VAT
In stock
Price Break
10+
€9,13
19+
€8,62
29+
€8,52
39+
€8,41
49+
€8,31
74+
€8,21
99+
€7,70
199+
€7,59
249+
€7,49
499+
€7,39
999+
€7,18
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 105mm
- Width:
- 4mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 105mm |
| Dw | 4mm |
| Ea | 84mm |
| Eb | 103mm |
| Dynamic load | 51000 N |
| Static load | 280000 N |
| Fatigue load limit Pu | 33500 N |
| Speed in grease | 1000 rpm |
| Speed in oil | 1500 rpm |
| Weight (assembly) | 63 g |
| d1 | 105mm |
| D | 105mm |
| D1 | 82mm |
| B | 5.75mm |
