SKU: AXK6085-MB

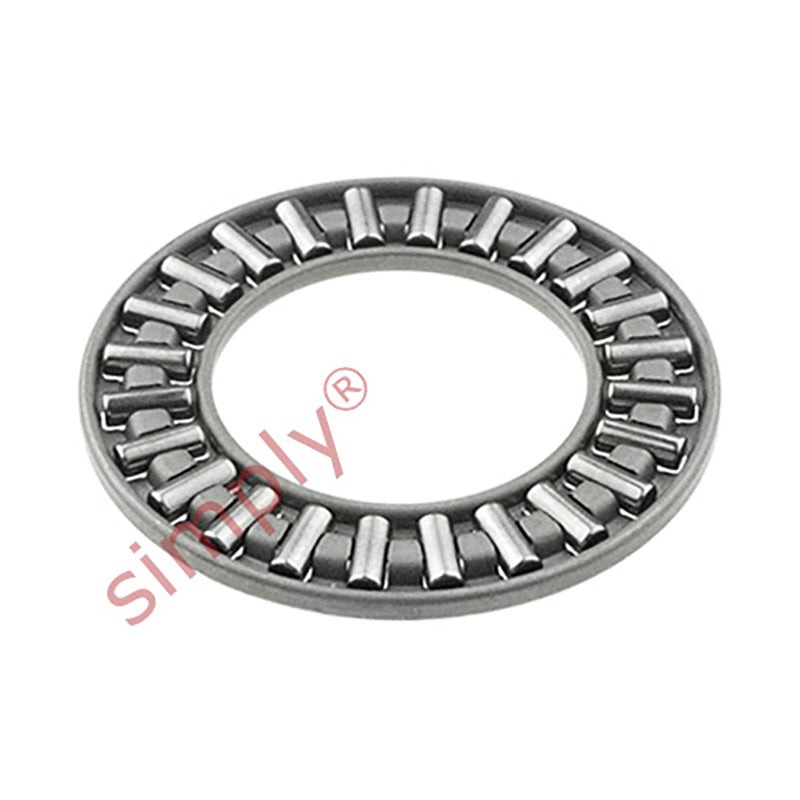

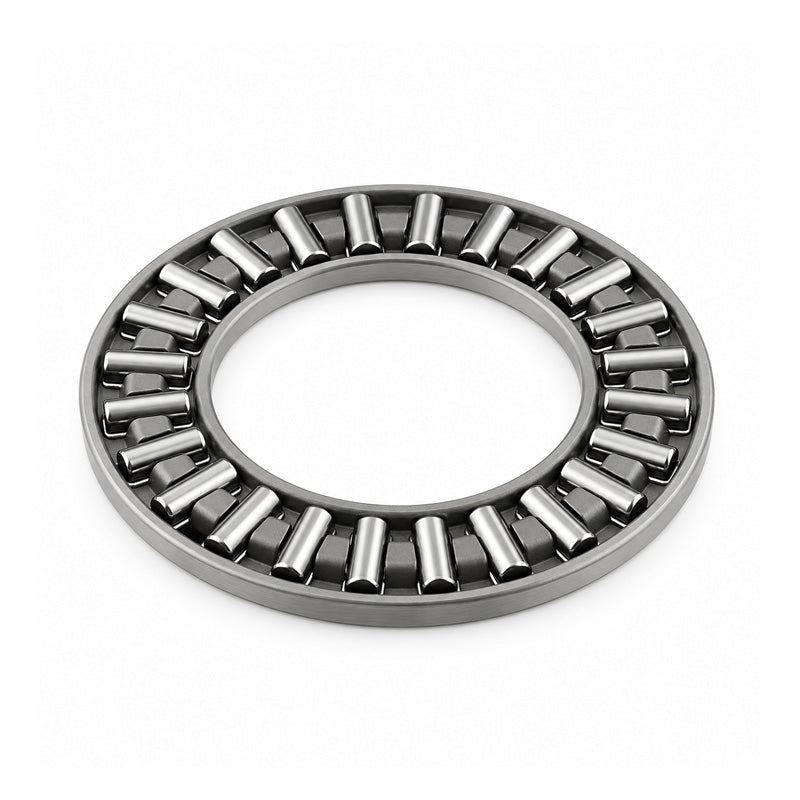

Major Brand AXK6085 Needle Roller Cage 60x85x3mm
Major Brand AXK6085 Needle Roller Cage 60x85x3mm
Regular price
€8,12
ex VAT
Regular price
Sale price
€8,12
ex VAT
In stock
Price Break
10+
€6,19
19+
€5,84
29+
€5,77
39+
€5,70
49+
€5,63
74+
€5,56
99+
€5,21
199+
€5,14
249+
€5,07
499+
€5,00
999+
€4,87
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 3mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| Dw | 3mm |
| Ea | 65mm |
| Eb | 83mm |
| Dynamic load | 37500 N |
| Static load | 232000 N |
| Fatigue load limit Pu | 28500 N |
| Speed in grease | 1300 rpm |
| Speed in oil | 1800 rpm |
| Weight (assembly) | 33 g |
| d1 | 85mm |
| D | 85mm |
| D1 | 62mm |
| B | 4.75mm |
