SKU: AXK4565-EU

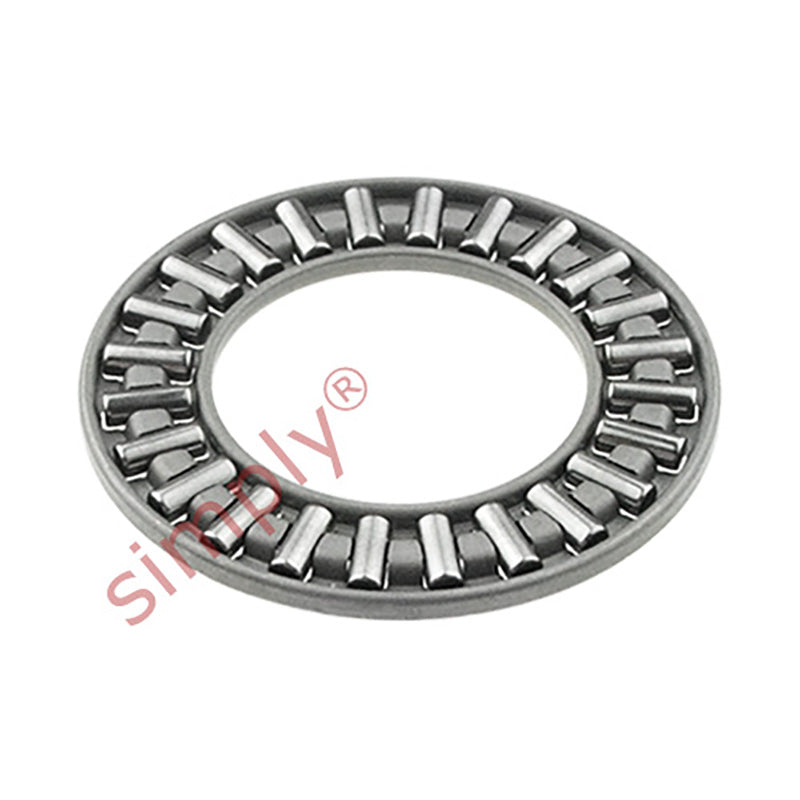

AXK4565 Budget Needle Roller Cage Only 45x65x3mm
AXK4565 Budget Needle Roller Cage Only 45x65x3mm
Regular price
€3,58
ex VAT
Regular price
Sale price
€3,58
ex VAT
In stock
Price Break
10+
€2,72
19+
€2,57
29+
€2,54
39+
€2,51
49+
€2,48
74+
€2,45
99+
€2,30
199+
€2,26
249+
€2,23
499+
€2,20
999+
€2,14
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 65mm
- Width:
- 3mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 65mm |
| Dw | 3mm |
| Ea | 50mm |
| Eb | 63mm |
| Dynamic load C | 27000 N |
| Static load Co | 127000 N |
| Fatigue load limit Pu | 15300 N |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| Weight (Assembly) | 18 g |
| d1 | 65mm |
| D | 65mm |
| D1 | 47mm |
| B | 4mm |
| r1r2 min | 0.6mm |
| Weight LS GS WS | 50 g |
| Weight AS | 13 g |
| Raceway washer | LS4565 |
| Thrust washer | AS4565 |
| Shaft washer | WS81109 |
| Housing washer | GS81109 |
