SKU: AXK4060-MB-AS4060-MB

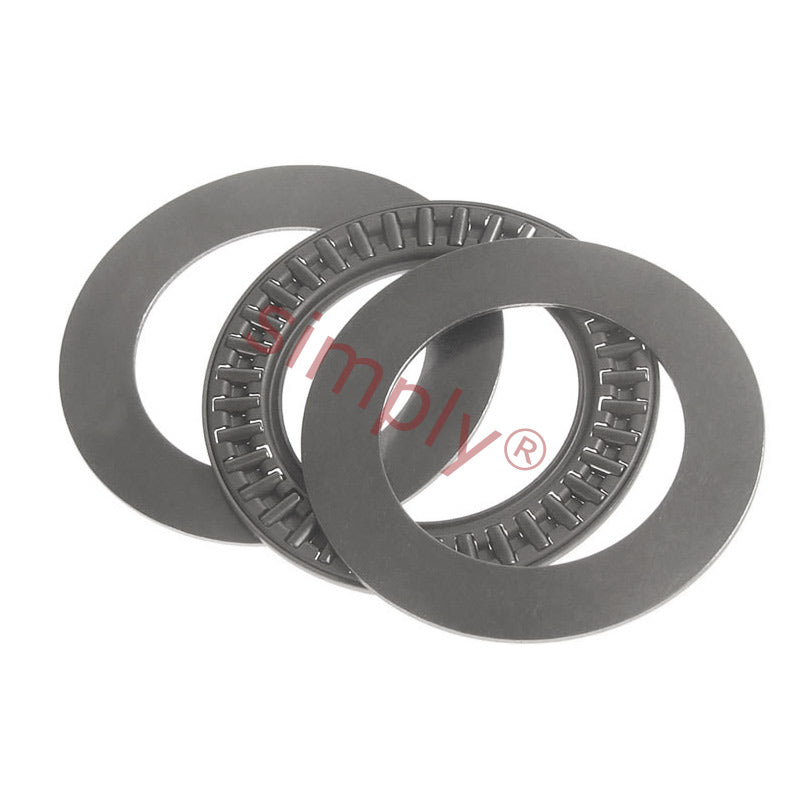

Major Brand AXK4060 Needle Roller Cage with 2 AS4060 Washers 40x60x5mm
Major Brand AXK4060 Needle Roller Cage with 2 AS4060 Washers 40x60x5mm
Regular price
€7,82
ex VAT
Regular price
Sale price
€7,82
ex VAT
In stock
Price Break
10+
€5,95
19+
€5,62
29+
€5,55
39+
€5,49
49+
€5,42
74+
€5,35
99+
€5,02
199+
€4,95
249+
€4,88
499+
€4,82
999+
€4,68
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 60mm
- Width:
- 5mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 60mm |
| Dw | 5mm total (2 washers at 1mm each) |
| Ea | 45mm |
| Eb | 58mm |
| Dynamic load | 25000 N |
| Static load | 114000 N |
| Fatigue load limit Pu | 13700 N |
| Speed in grease | 1700 rpm |
| Speed in oil | 2400 rpm |
| Weight (assembly) | 16 g |
| d1 | 60mm |
| D | 60mm |
| D1 | 42mm |
| B | 3.5mm |
