SKU: AXK1831-MB-AS1831-MB

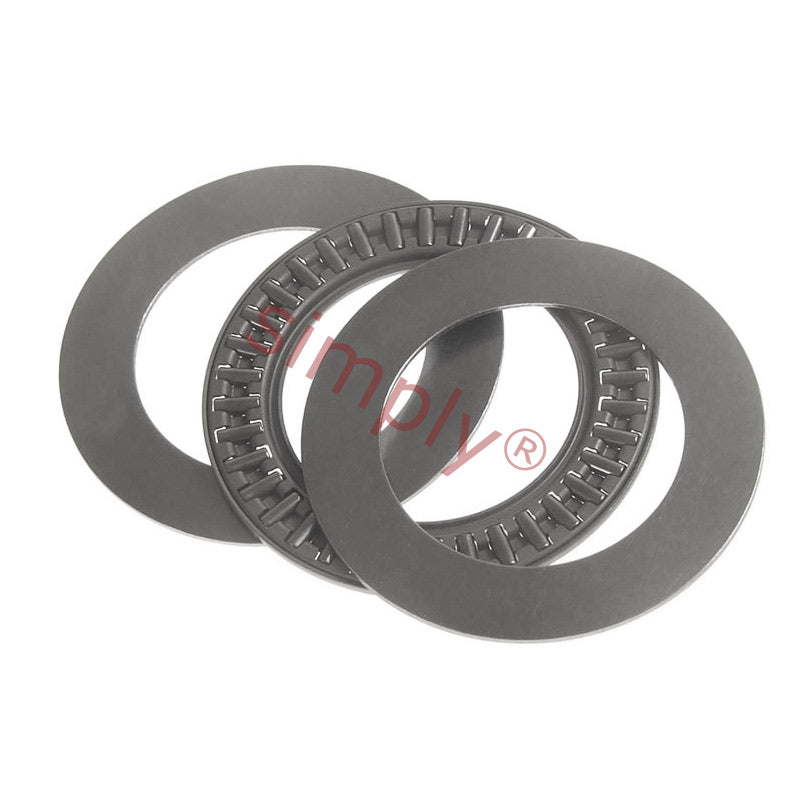

Major Brand AXK1831 Needle Roller Cage with 2 AS1831 Washers 18x31x4mm
Major Brand AXK1831 Needle Roller Cage with 2 AS1831 Washers 18x31x4mm
Regular price
€5,17
ex VAT
Regular price
Sale price
€5,17
ex VAT
In stock
Price Break
10+
€3,93
19+
€3,71
29+
€3,67
39+
€3,63
49+
€3,58
74+
€3,54
99+
€3,32
199+
€3,27
249+
€3,23
499+
€3,18
999+
€3,09
Description
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 31mm
- Width:
- 4mm
Technical
Technical
| d | 18mm |
|---|---|
| D | 31mm |
| Dw | 4mm total (2 washers at 1mm each) |
| Dynamic load | 9550 N |
| Static load | 34400N |
| Raceway Washer | LS1831 |
| Thrust Washer | AS1831 |
