SKU: AXK1730-MB

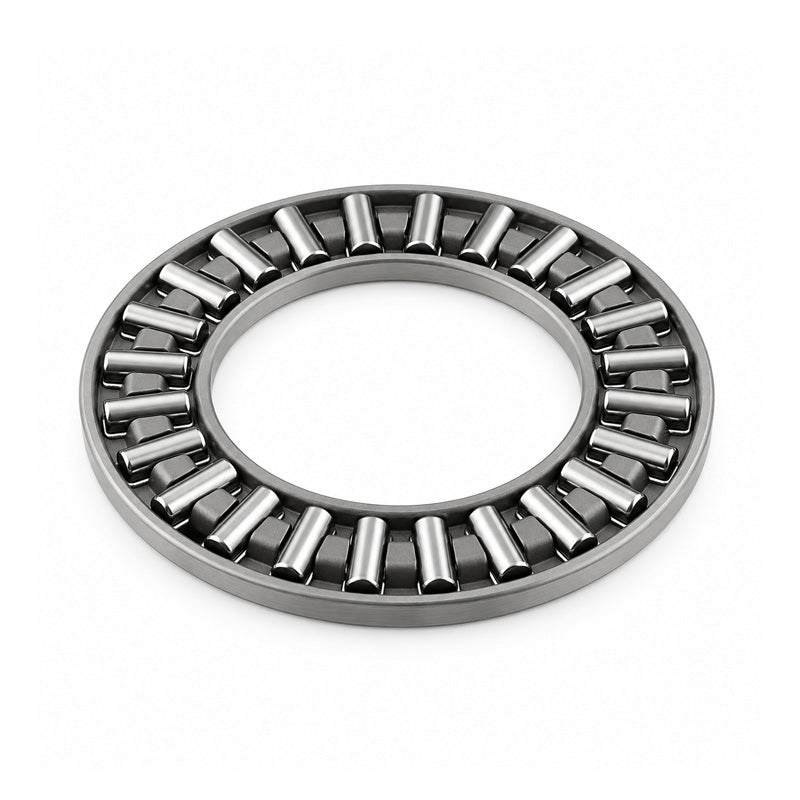

Major Brand AXK1730 Needle Roller Cage 17x30x2mm
Major Brand AXK1730 Needle Roller Cage 17x30x2mm
Regular price
€4,62
ex VAT
Regular price
Sale price
€4,62
ex VAT
In stock
Price Break
10+
€3,52
19+
€3,32
29+
€3,28
39+
€3,24
49+
€3,20
74+
€3,16
99+
€2,96
199+
€2,92
249+
€2,89
499+
€2,85
999+
€2,77
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 2mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| Dw | 2mm |
| Ea | 19mm |
| Eb | 29mm |
| Dynamic load | 11000 N |
| Static load | 40500 N |
| Fatigue load limit Pu | 4500 N |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| Weight (assembly) | 4 g |
| d1 | 30mm |
| D | 30mm |
| D1 | 18mm |
| B | 2.75mm |
