SKU: AXK160200-KOYO

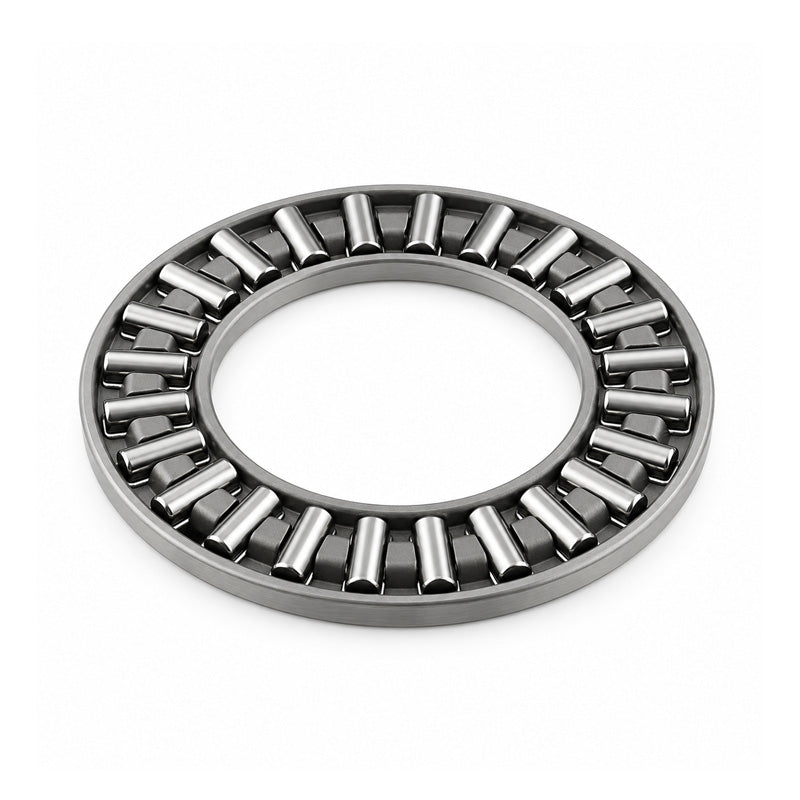

AXK160200 Koyo Needle Roller Cage 160x200x5mm
AXK160200 Koyo Needle Roller Cage 160x200x5mm
Regular price
€128,94
ex VAT
Regular price
Sale price
€128,94
ex VAT
In stock
Price Break
5+
€127,65
10+
€122,49
20+
€119,91
50+
€116,05
100+
€113,47
500+
€107,02
1000+
€90,26
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 200mm
- Width:
- 5mm
Technical
Technical
| d | 160mm |
|---|---|
| D | 200mm |
| Dw | 5mm |
| Ea | 166mm |
| Eb | 197mm |
| Dynamic load | 125000 N |
| Static load | 1000000 N |
| Fatigue load limit Pu | 106000 N |
| Speed in grease | 630 rpm |
| Speed in oil | 850 rpm |
| Weight (assembly) | 245 g |
| d1 | 198mm |
| D | 200mm |
| D1 | 162mm |
| B | 9.5mm |
