SKU: AXK150190-EU

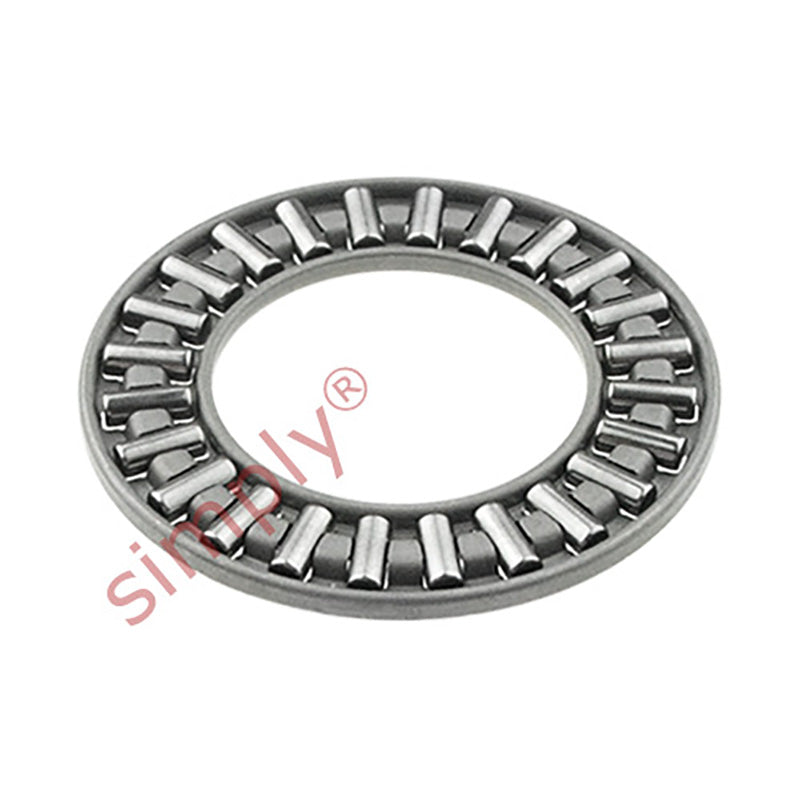

AXK150190 Budget Needle Roller Cage Only 150x190x5mm
AXK150190 Budget Needle Roller Cage Only 150x190x5mm
Regular price
€17,10
ex VAT
Regular price
Sale price
€17,10
ex VAT
In stock
Price Break
10+
€13,02
19+
€12,29
29+
€12,14
39+
€12,00
49+
€11,85
74+
€11,70
99+
€10,97
199+
€10,83
249+
€10,68
499+
€10,53
999+
€10,24
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 5mm
Technical
Technical
| d | 150mm |
|---|---|
| D | 190mm |
| Dw | 5mm |
| Ea | 156mm |
| Eb | 187mm |
| Dynamic load C | 120000 N |
| Static load Co | 950000 N |
| Fatigue load limit Pu | 102000 N |
| Speed in grease | 630 rpm |
| Speed in oil | 850 rpm |
| Weight (Assembly) | 230 g |
| d1 | 188mm |
| D | 190mm |
| D1 | 152mm |
| B | 9.5mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 795 g |
| Weight AS | 84 g |
| Raceway washer | LS150190 |
| Thrust washer | AS150190 |
| Shaft washer | WS81130 |
| Housing washer | GS81130 |
