SKU: AXK130170-KOYO

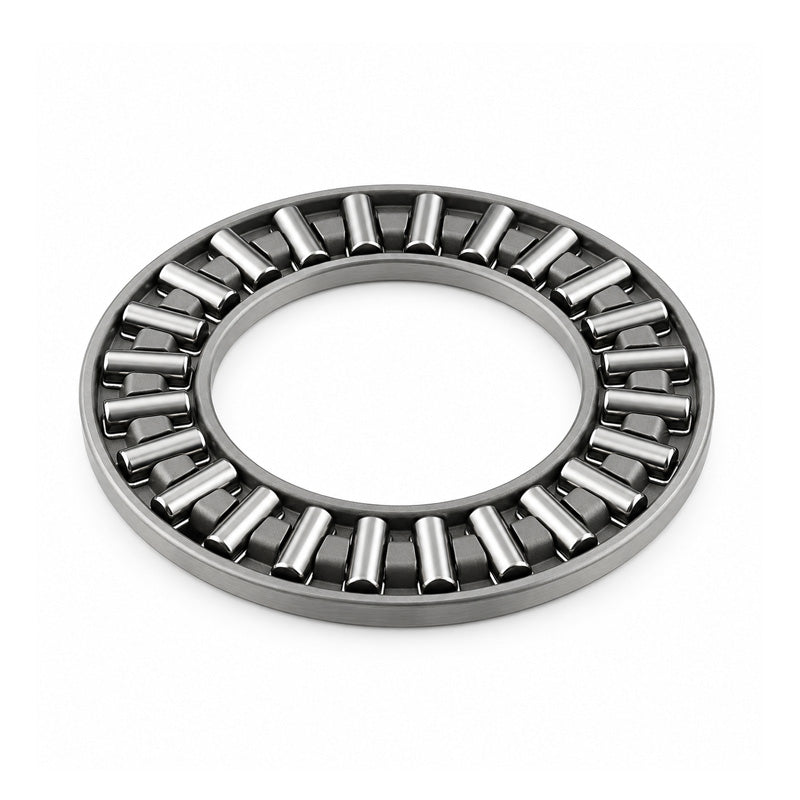

AXK130170 Koyo Needle Roller Cage 130x170x5mm
AXK130170 Koyo Needle Roller Cage 130x170x5mm
Regular price
€77,33
ex VAT
Regular price
Sale price
€77,33
ex VAT
In stock
Price Break
5+
€76,56
10+
€73,46
20+
€71,92
50+
€69,60
100+
€68,05
500+
€64,18
1000+
€54,13
Couldn't load pickup availability
Description
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 5mm
Technical
Technical
| d | 130mm |
|---|---|
| D | 170mm |
| Dw | 5mm |
| Ea | 136mm |
| Eb | 167mm |
| Dynamic load | 112000 N |
| Static load | 830000 N |
| Fatigue load limit Pu | 93000 N |
| Speed in grease | 700 rpm |
| Speed in oil | 950 rpm |
| Weight (assembly) | 205 g |
| d1 | 170mm |
| D | 170mm |
| D1 | 132mm |
| B | 9mm |
