SKU: AXK1112-NTN

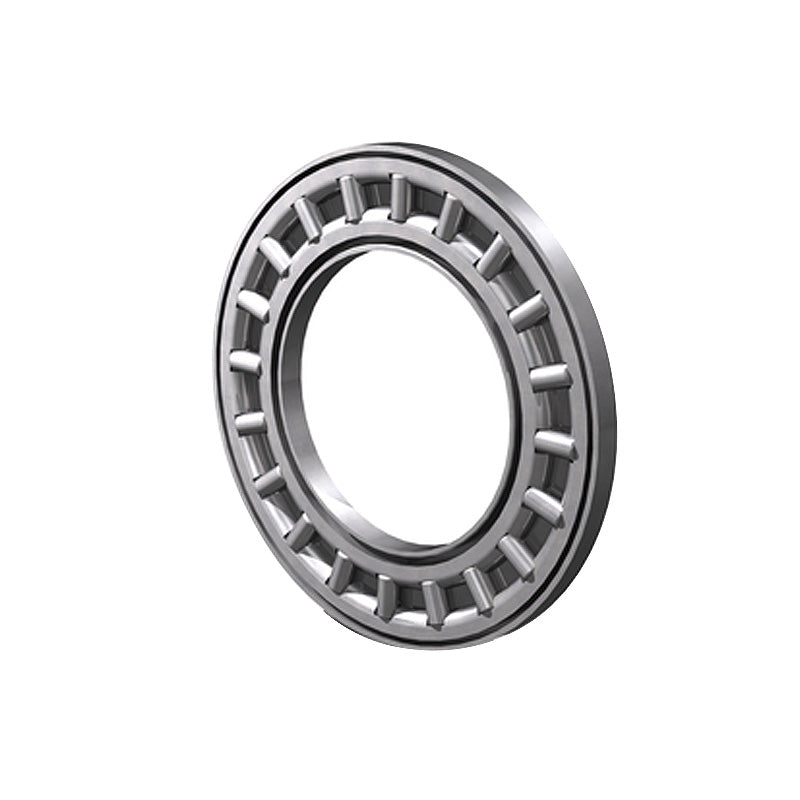

NTN AXK1112 Needle Roller Cage Only 60x85x3mm - Allow 2-3 Days
NTN AXK1112 Needle Roller Cage Only 60x85x3mm - Allow 2-3 Days
Regular price
€8,54
ex VAT
Regular price
Sale price
€8,54
ex VAT
In stock
Price Break
3+
€6,51
4+
€6,14
9+
€6,07
19+
€5,99
49+
€5,92
99+
€5,85
499+
€5,48
999+
€5,41
1999+
€5,34
2999+
€5,26
4999+
€5,12
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 3mm
Technical
Technical
| Dc1 - Inside diameter | 60mm |
|---|---|
| Dc - Outside diameter | 85mm |
| Dw - Roller Width | 3mm |
| AS washer reference | AS1112 |
| WS inner ring reference | WS81112 |
| GS outer ring reference | GS81112 |
| Ea - Rollers reference outer diameter | 81.9mm |
| Eb - Rollers reference inner diameter | 66mm |
| Ca - Dynamic axial load rating | 44.5 kN |
| C0a - Static axial load rating | 234 kN |
| Cua - Limit axial load rating | 28.6 kN |
| Grease lubrication limit speed | 800 tr/min |
| Oil lubrication limit speed | 3200 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
