SKU: AXK1110-NTN

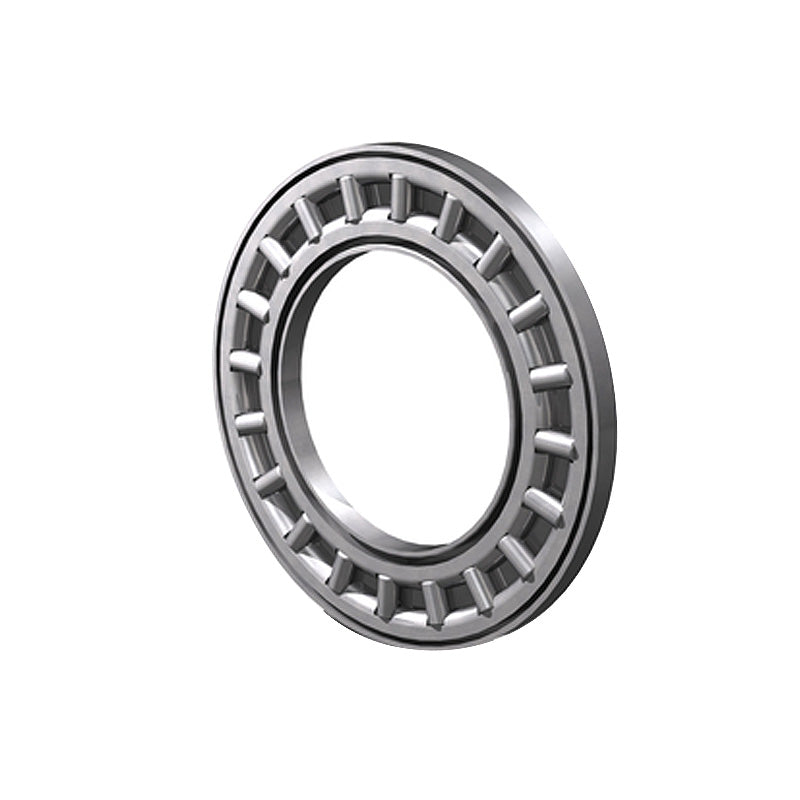

NTN AXK1110 Needle Roller Cage Only 50x70x3mm - Allow 2-3 Days
NTN AXK1110 Needle Roller Cage Only 50x70x3mm - Allow 2-3 Days
Regular price
€7,00
ex VAT
Regular price
Sale price
€7,00
ex VAT
Low stock
Price Break
3+
€5,33
4+
€5,03
9+
€4,97
19+
€4,91
49+
€4,85
99+
€4,79
499+
€4,49
999+
€4,43
1999+
€4,37
2999+
€4,31
4999+
€4,19
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 70mm
- Width:
- 3mm
Technical
Technical
| Dc1 - Inside diameter | 50mm |
|---|---|
| Dc - Outside diameter | 70mm |
| Dw - Roller Width | 3mm |
| AS washer reference | AS1110 |
| WS inner ring reference | WS81110 |
| GS outer ring reference | GS81110 |
| Ea - Rollers reference outer diameter | 67.4mm |
| Eb - Rollers reference inner diameter | 55.5mm |
| Ca - Dynamic axial load rating | 31.5 kN |
| C0a - Static axial load rating | 143 kN |
| Cua - Limit axial load rating | 17.4 kN |
| Grease lubrication limit speed | 1000 tr/min |
| Oil lubrication limit speed | 3900 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
