SKU: AXK110145-EU

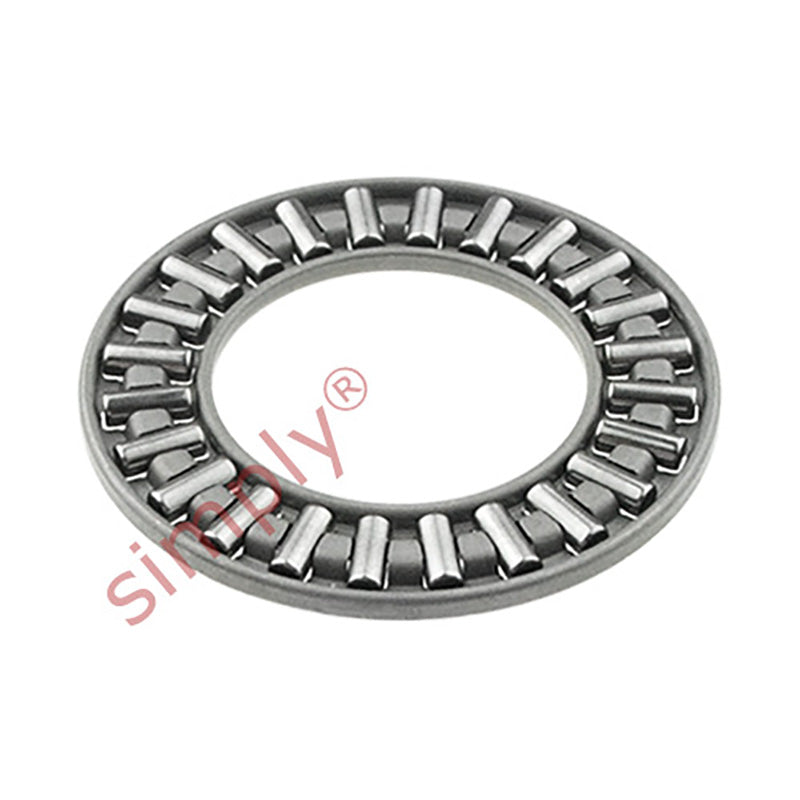

AXK110145 Budget Needle Roller Cage Only 110x145x4mm
AXK110145 Budget Needle Roller Cage Only 110x145x4mm
Regular price
€10,51
ex VAT
Regular price
Sale price
€10,51
ex VAT
In stock
Price Break
10+
€8,00
19+
€7,55
29+
€7,46
39+
€7,37
49+
€7,28
74+
€7,19
99+
€6,74
199+
€6,65
249+
€6,56
499+
€6,47
999+
€6,29
Description
Description
|
Budget AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 145mm
- Width:
- 4mm
Technical
Technical
| d | 110mm |
|---|---|
| D | 145mm |
| Dw | 4mm |
| Ea | 115mm |
| Eb | 143mm |
| Dynamic load C | 81500 N |
| Static load Co | 620000 N |
| Fatigue load limit Pu | 71000 N |
| Speed in grease | 800 rpm |
| Speed in oil | 1100 rpm |
| Weight (Assembly) | 120 g |
| d1 | 145mm |
| D | 145mm |
| D1 | 112mm |
| B | 7mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 385 g |
| Weight AS | 55 g |
| Raceway washer | LS110145 |
| Thrust washer | AS110145 |
| Shaft washer | WS81122 |
| Housing washer | GS81122 |
