SKU: AX715-MB
Major Brand AX715 Thin Needle Roller Thrust Bearing 7x15x2.3mm
Major Brand AX715 Thin Needle Roller Thrust Bearing 7x15x2.3mm
Regular price
€32,03
ex VAT
Regular price
Sale price
€32,03
ex VAT
In stock
Price Break
10+
€28,51
19+
€26,91
29+
€26,58
39+
€26,26
49+
€25,94
74+
€25,62
99+
€24,02
199+
€23,70
249+
€23,38
499+
€23,06
999+
€22,42
Couldn't load pickup availability
Share this product
Description
Description

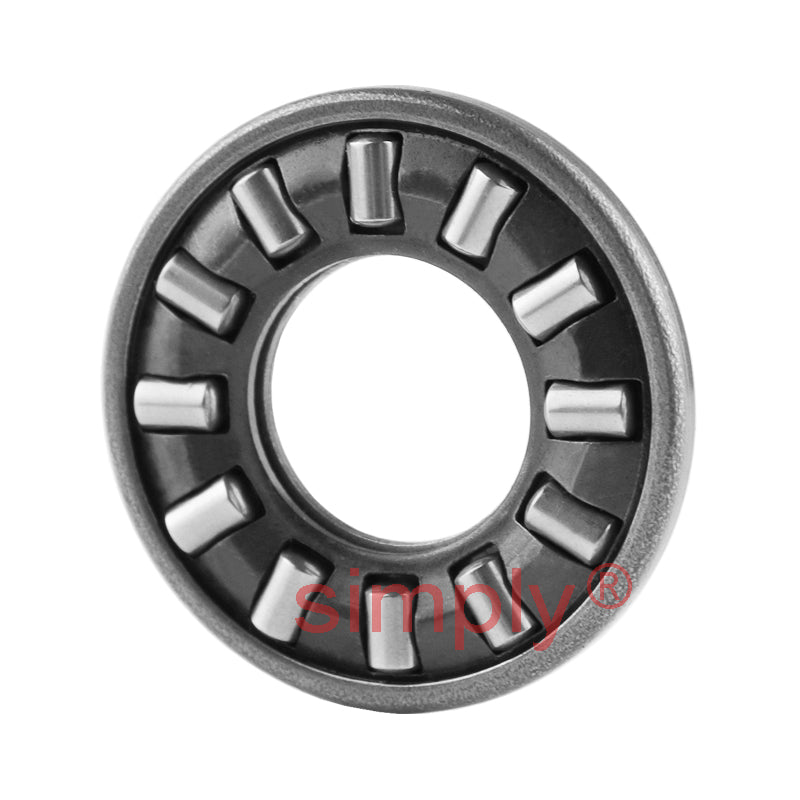

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 15mm
- Width:
- 2.3mm
Technical
Technical
| Dc1 | 7mm |
|---|---|
| D | 15mm |
| B1 | 2.3mm |
| Eb | 8.3mm |
| Ea | 12.9mm |
| Dynamic load | 3.55 kN |
| Static load | 7.6 kN |
| Speed rating in oil | 22000 rpm |
| Mass | 0.002 kg |
