SKU: AX680105-MB

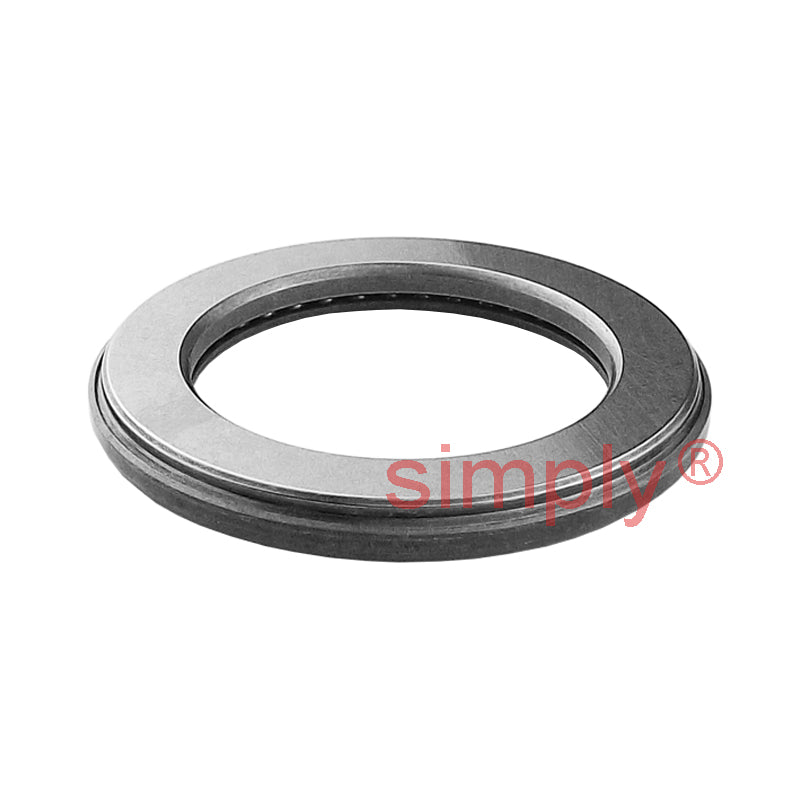

Major Brand AX680105 Thick Needle Roller Thrust Bearing 80x105x6mm Allow 2-3 Days
Major Brand AX680105 Thick Needle Roller Thrust Bearing 80x105x6mm Allow 2-3 Days
Regular price
€282,86
ex VAT
Regular price
Sale price
€282,86
ex VAT
In stock
Price Break
10+
€215,42
19+
€203,32
29+
€200,90
39+
€198,48
49+
€196,06
74+
€193,64
99+
€181,53
199+
€179,11
249+
€176,69
499+
€174,27
999+
€169,43
Share this product
Description
Description

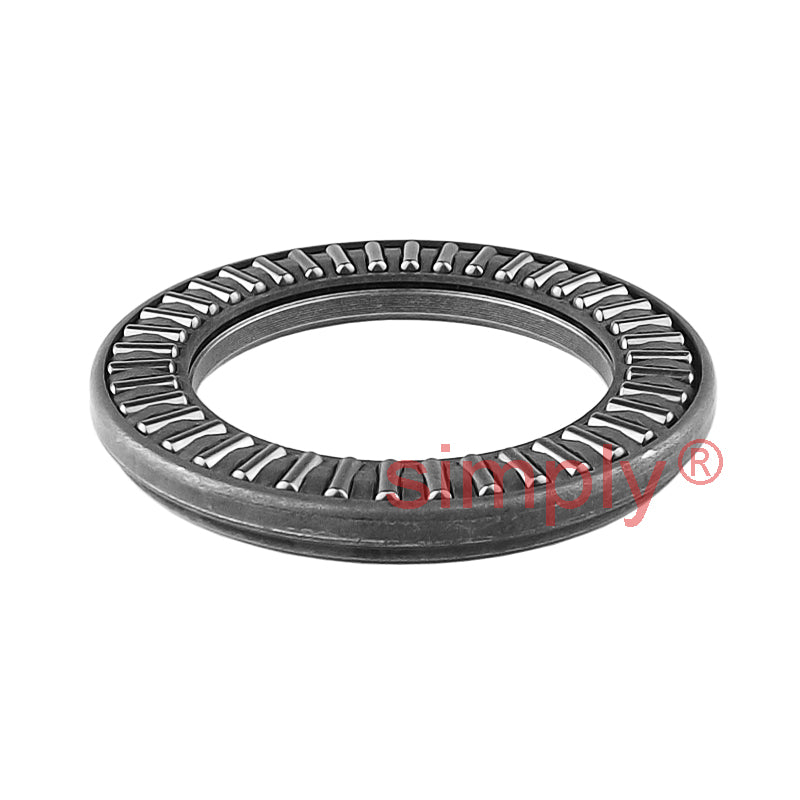

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 105mm
- Width:
- 6mm
Technical
Technical
| Dc1 | 80mm |
|---|---|
| D | 105mm |
| B1 | 6mm |
| Eb | 83.5mm |
| Ea | 99.2mm |
| Dynamic load | 36.5 kN |
| Static load | 253 kN |
| Speed rating in oil | 2700 rpm |
| Mass | 0.134 kg |
