SKU: AX675100-NADELLA

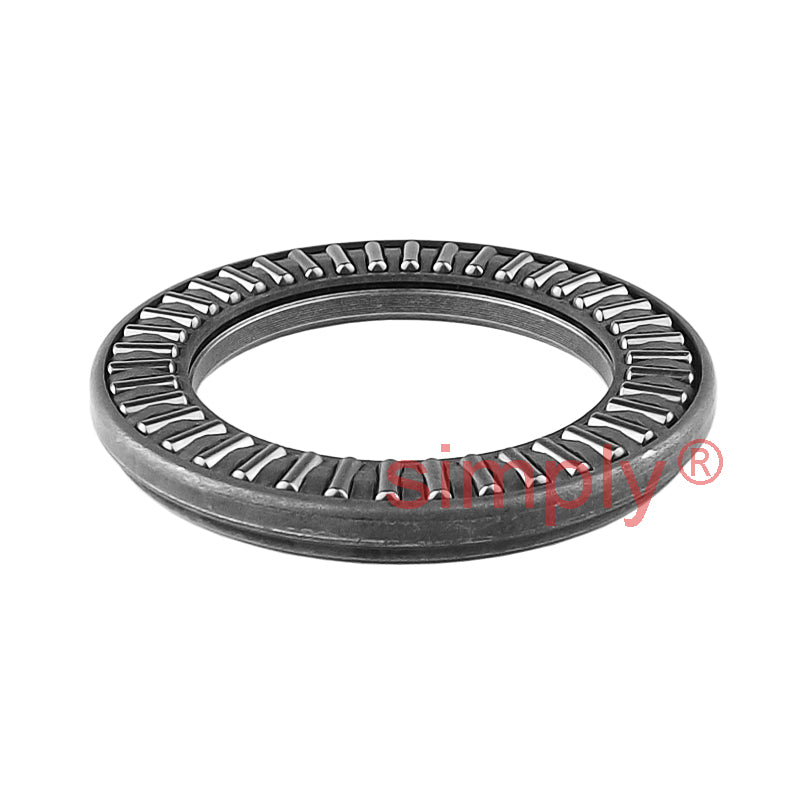

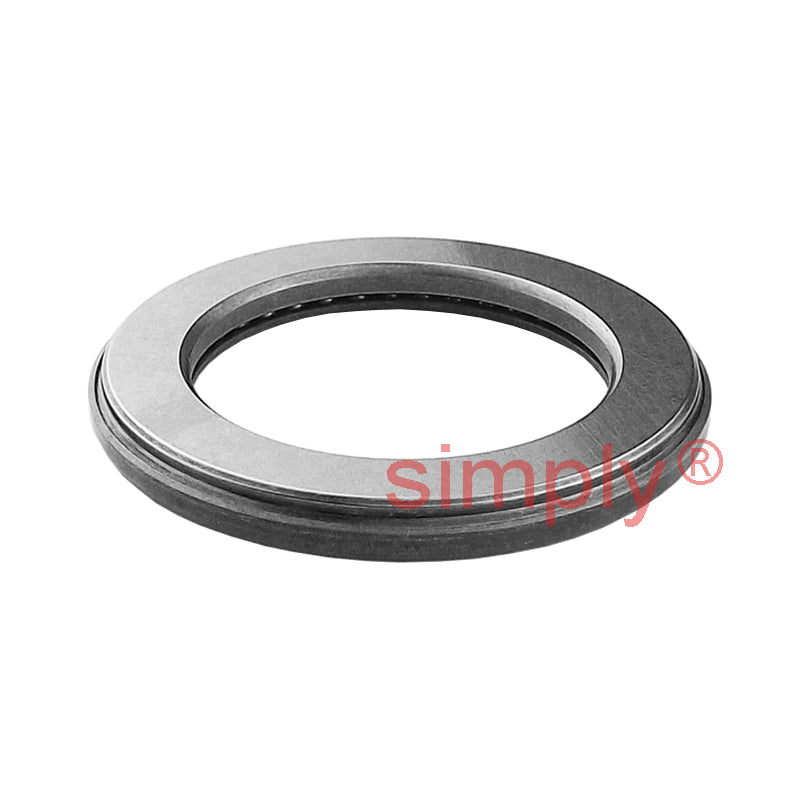

Nadella AX675100 Thick Needle Roller Thrust Bearing 75x100x6mm Allow 2-3 Day
Nadella AX675100 Thick Needle Roller Thrust Bearing 75x100x6mm Allow 2-3 Day
Out of stock
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 100mm
- Width:
- 6mm
Technical
Technical
| Dc1 | 75mm |
|---|---|
| D | 100mm |
| B1 | 6mm |
| Eb | 78.5mm |
| Ea | 94.2mm |
| Dynamic load | 36 kN |
| Static load | 240 kN |
| Speed rating in oil | 2900 rpm |
| Mass | 0.127 kg |
