SKU: AX66590-MB

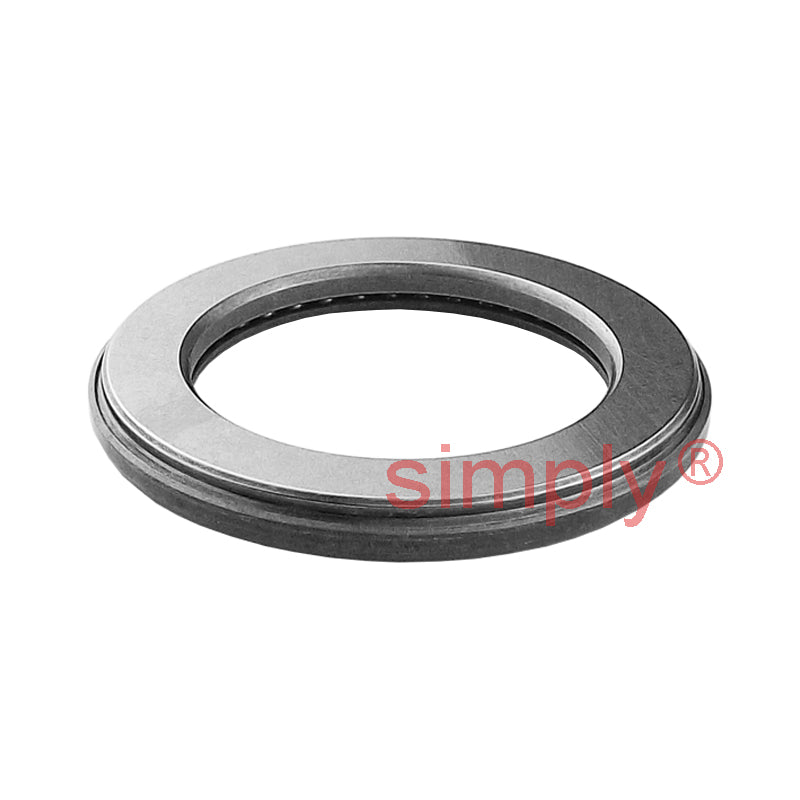

Major Brand AX66590 Thick Needle Roller Thrust Bearing 65x90x6mm Allow 2-3 Days
Major Brand AX66590 Thick Needle Roller Thrust Bearing 65x90x6mm Allow 2-3 Days
Regular price
€306,19
ex VAT
Regular price
Sale price
€306,19
ex VAT
In stock
Price Break
10+
€233,20
19+
€220,10
29+
€217,48
39+
€214,86
49+
€212,24
74+
€209,62
99+
€196,52
199+
€193,90
249+
€191,28
499+
€188,65
999+
€183,41
Share this product
Description
Description

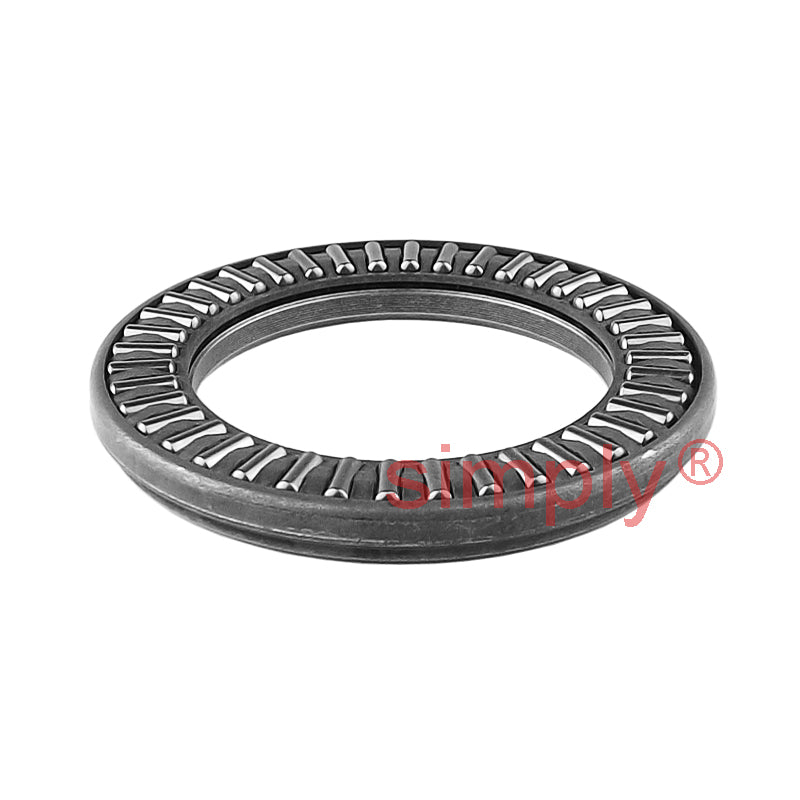

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 6mm
Technical
Technical
| Dc1 | 65mm |
|---|---|
| D | 90mm |
| B1 | 6mm |
| Eb | 68.5mm |
| Ea | 84.2mm |
| Dynamic load | 33.5 kN |
| Static load | 210 kN |
| Speed rating in oil | 3200 rpm |
| Mass | 0.114 kg |
