SKU: AX53047-MB

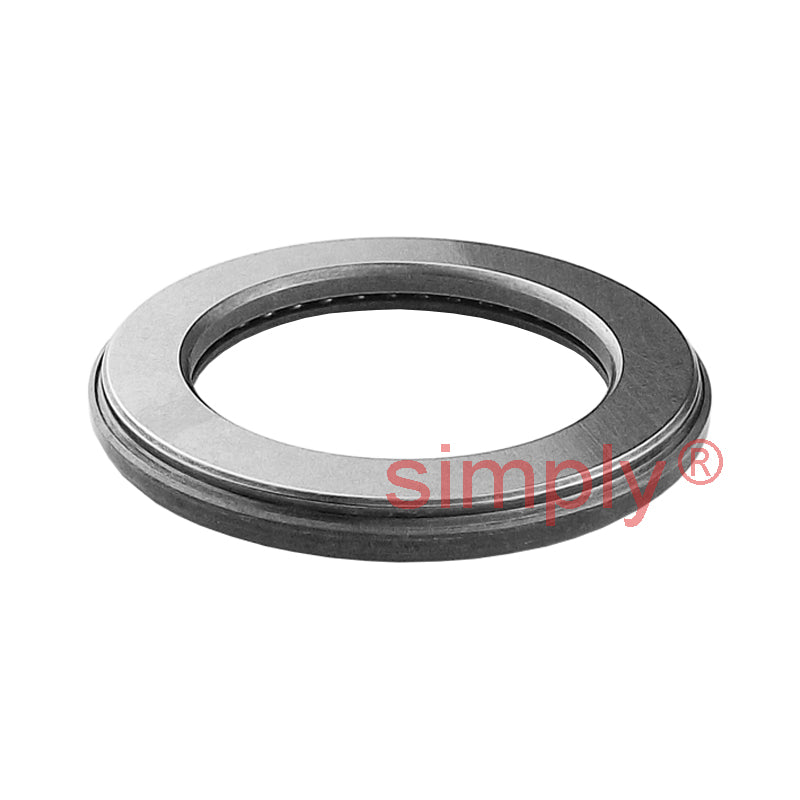

Major Brand AX53047 Thick Needle Roller Thrust Bearing 30x47x5mm
Major Brand AX53047 Thick Needle Roller Thrust Bearing 30x47x5mm
Regular price
€31,41
ex VAT
Regular price
Sale price
€31,41
ex VAT
In stock
Price Break
10+
€23,92
19+
€22,58
29+
€22,31
39+
€22,04
49+
€21,77
74+
€21,50
99+
€20,16
199+
€19,89
249+
€19,62
499+
€19,35
999+
€18,82
Share this product
Description
Description

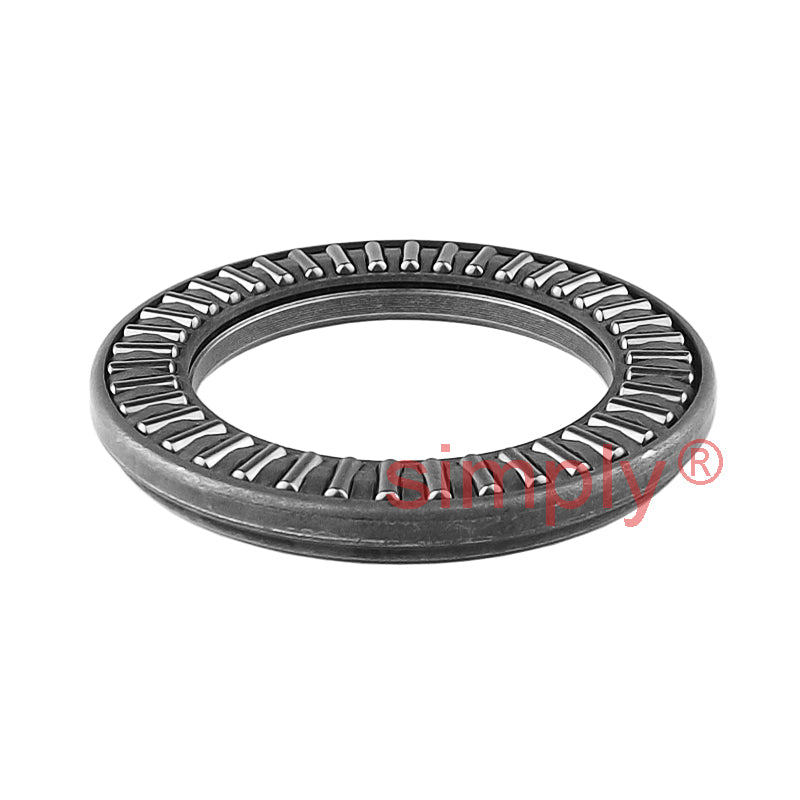

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 5mm
Technical
Technical
| Dc1 | 30mm |
|---|---|
| D | 47mm |
| B1 | 5mm |
| Eb | 32.7mm |
| Ea | 42.4mm |
| Dynamic load | 14.5 kN |
| Static load | 57 kN |
| Speed rating in oil | 6500 rpm |
| Mass | 0.029 kg |
