SKU: AX3553-MB

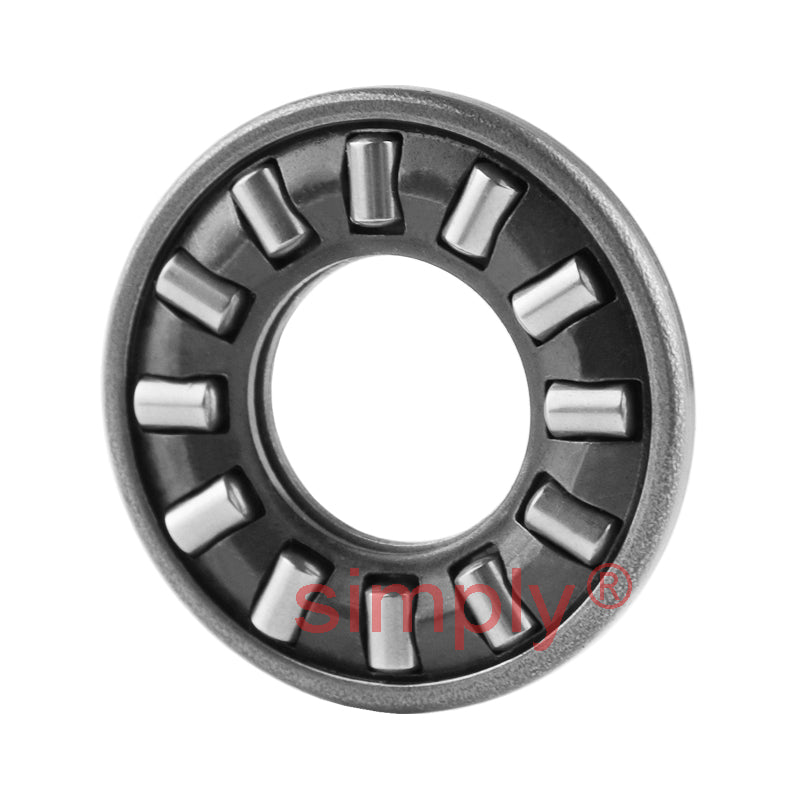

Major Brand AX3553 Thin Needle Roller Thrust Bearing 35x53x2.8mm
Major Brand AX3553 Thin Needle Roller Thrust Bearing 35x53x2.8mm
Regular price
€15,25
ex VAT
Regular price
Sale price
€15,25
ex VAT
In stock
Price Break
10+
€11,61
19+
€10,96
29+
€10,83
39+
€10,70
49+
€10,57
74+
€10,44
99+
€9,79
199+
€9,66
249+
€9,53
499+
€9,40
999+
€9,14
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 53mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 35mm |
|---|---|
| D | 53mm |
| B1 | 2.8mm |
| Eb | 37.2mm |
| Ea | 49mm |
| Dynamic load | 18.9 kN |
| Static load | 84 kN |
| Speed rating in oil | 5500 rpm |
| Mass | 0.019 kg |
