SKU: AX3047-MB
Major Brand AX3047 Thin Needle Roller Thrust Bearing 30x47x2.8mm
Major Brand AX3047 Thin Needle Roller Thrust Bearing 30x47x2.8mm
Regular price
€18,71
ex VAT
Regular price
Sale price
€18,71
ex VAT
In stock
Price Break
10+
€16,65
19+
€15,72
29+
€15,53
39+
€15,34
49+
€15,16
74+
€14,97
99+
€14,03
199+
€13,85
249+
€13,66
499+
€13,47
999+
€13,10
Couldn't load pickup availability
Description
Description

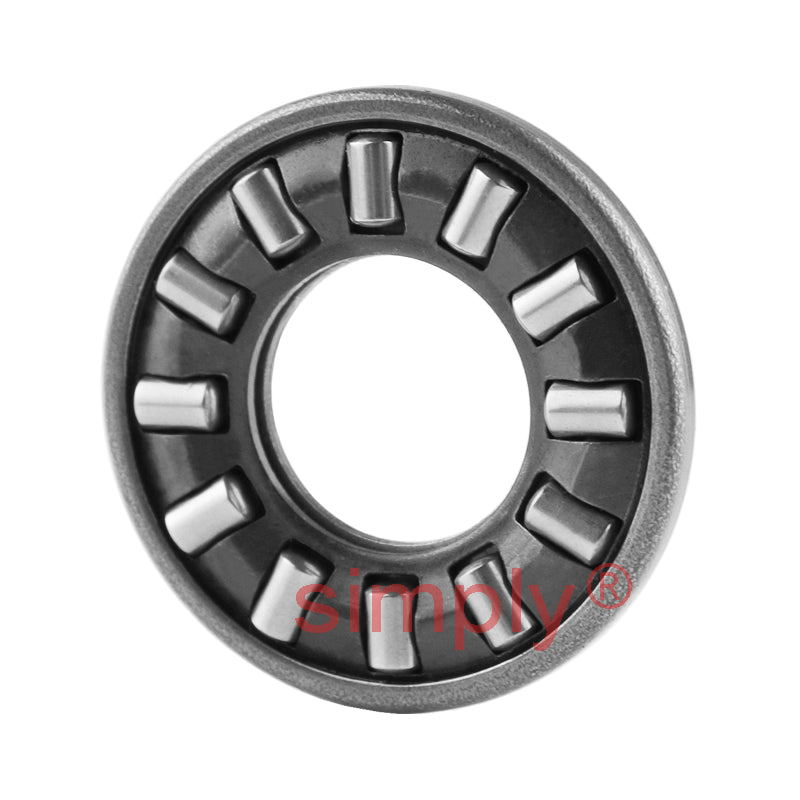

AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 30mm |
|---|---|
| D | 47mm |
| B1 | 2.8mm |
| Eb | 32.7mm |
| Ea | 42.4mm |
| Dynamic load | 14.5 kN |
| Static load | 57 kN |
| Speed rating in oil | 6500 rpm |
| Mass | 0.014 kg |
