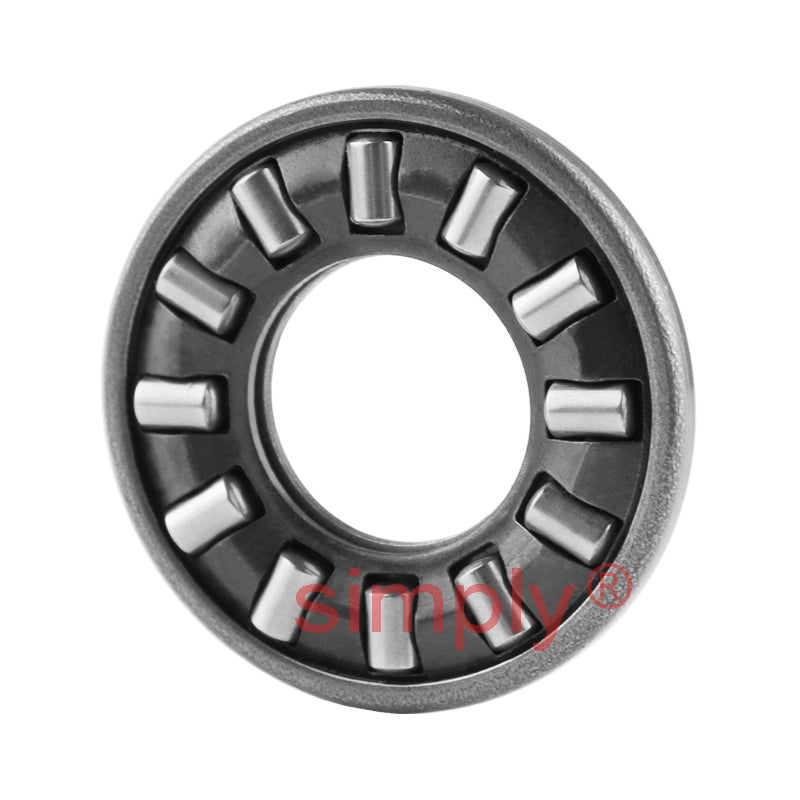

Nadella AX3.575100 Thin Needle Roller Thrust Bearing 75x100x3.5mm - Allow 2-3 Days
Nadella AX3.575100 Thin Needle Roller Thrust Bearing 75x100x3.5mm - Allow 2-3 Days
Regular price
€265,04
ex VAT
Regular price
Sale price
€265,04
ex VAT
In stock
Price Break
5+
€262,39
10+
€251,79
20+
€246,49
50+
€238,54
100+
€233,24
500+
€219,98
1000+
€185,53
Couldn't load pickup availability
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 100mm
- Width:
- 3.5mm
Technical
Technical
| Dc1 | 75mm |
|---|---|
| D | 100mm |
| B1 | 3.5mm |
| Eb | 78.5mm |
| Ea | 94.2mm |
| Dynamic load | 36 kN |
| Static load | 240 kN |
| Speed rating in oil | 2900 rpm |
| Mass | 0.065 kg |
