SKU: AX1226-MB

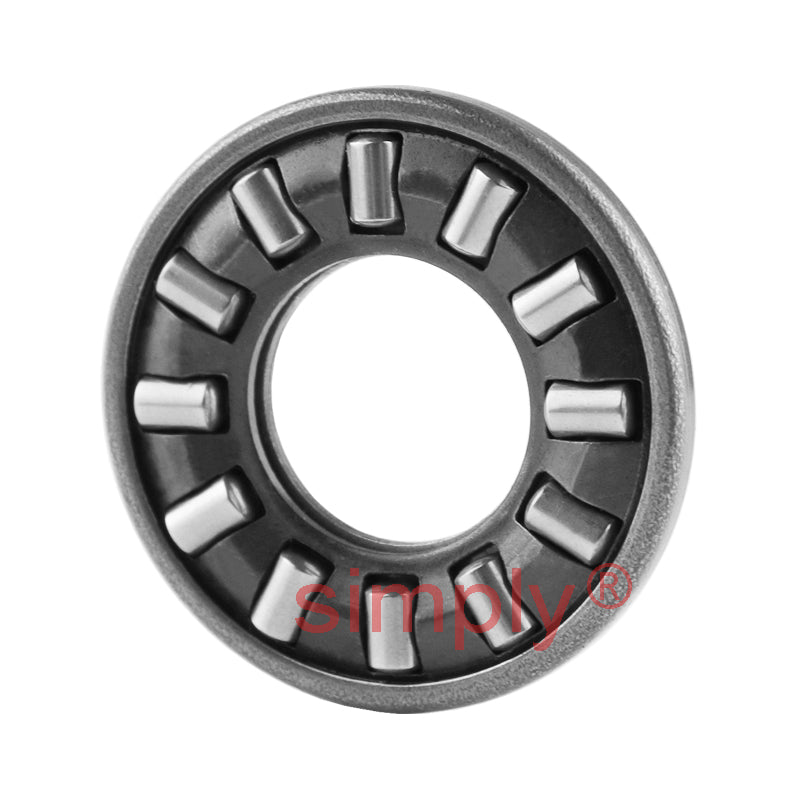

Major Brand AX1226 Thin Needle Roller Thrust Bearing 12x26x2.8mm
Major Brand AX1226 Thin Needle Roller Thrust Bearing 12x26x2.8mm
Regular price
€13,51
ex VAT
Regular price
Sale price
€13,51
ex VAT
In stock
Price Break
10+
€10,29
19+
€9,71
29+
€9,59
39+
€9,48
49+
€9,36
74+
€9,25
99+
€8,67
199+
€8,55
249+
€8,44
499+
€8,32
999+
€8,09
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 26mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 12mm |
|---|---|
| D | 26mm |
| B1 | 2.8mm |
| Eb | 15mm |
| Ea | 22.6mm |
| Dynamic load | 6.9 kN |
| Static load | 17.7 kN |
| Speed rating in oil | 13000 rpm |
| Mass | 0.006 kg |
