SKU: AX12180225-MB

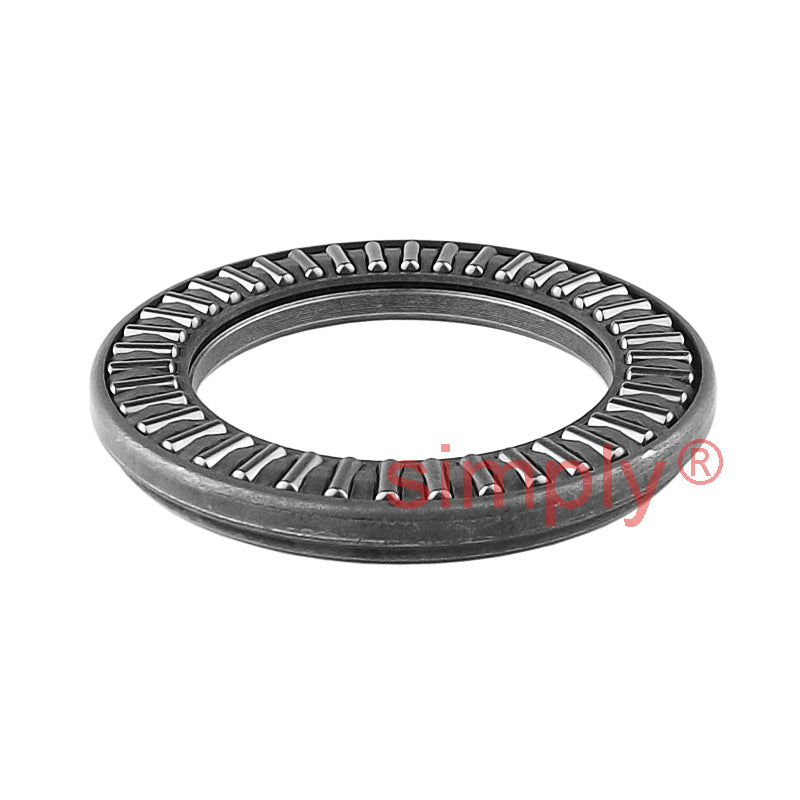

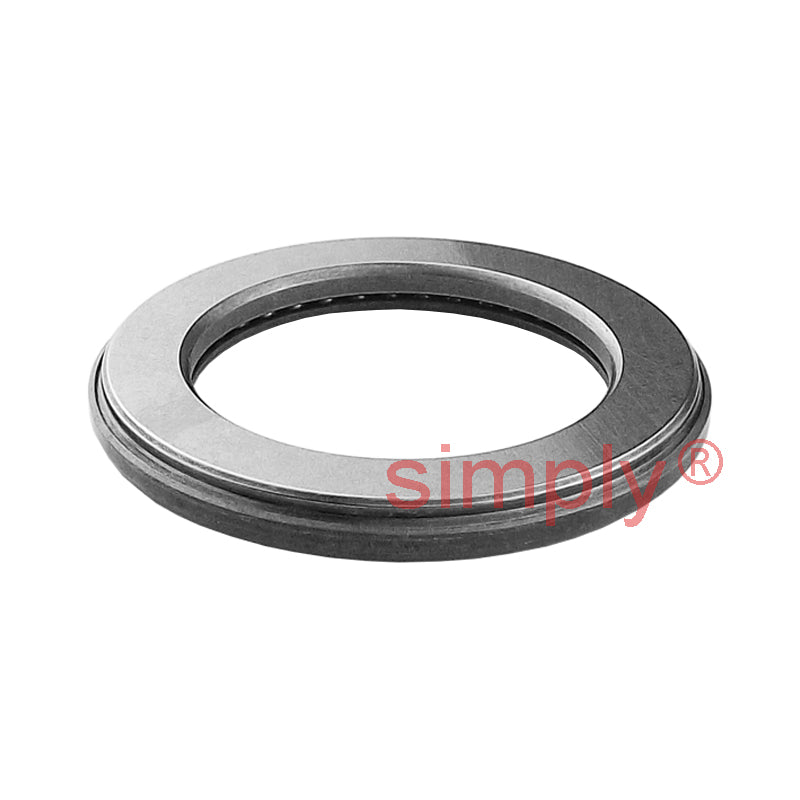

Major Brand AX12180225 Thick Needle Roller Thrust Bearing 180x225x12mm Allow 2-3 Days
Major Brand AX12180225 Thick Needle Roller Thrust Bearing 180x225x12mm Allow 2-3 Days
Regular price
€3.105,54
ex VAT
Regular price
Sale price
€3.105,54
ex VAT
In stock
Price Break
10+
€2.365,18
19+
€2.232,30
29+
€2.205,73
39+
€2.179,15
49+
€2.152,58
74+
€2.126,00
99+
€1.993,13
199+
€1.966,55
249+
€1.939,98
499+
€1.913,40
999+
€1.860,25
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 225mm
- Width:
- 12mm
Technical
Technical
| Dc1 | 180mm |
|---|---|
| D | 225mm |
| B1 | 12mm |
| Eb | 185mm |
| Ea | 217mm |
| Dynamic load | 173 kN |
| Static load | 1250 kN |
| Speed rating in oil | 1200 rpm |
| Mass | 1.05 kg |
