SKU: AX11140180-NADELLA

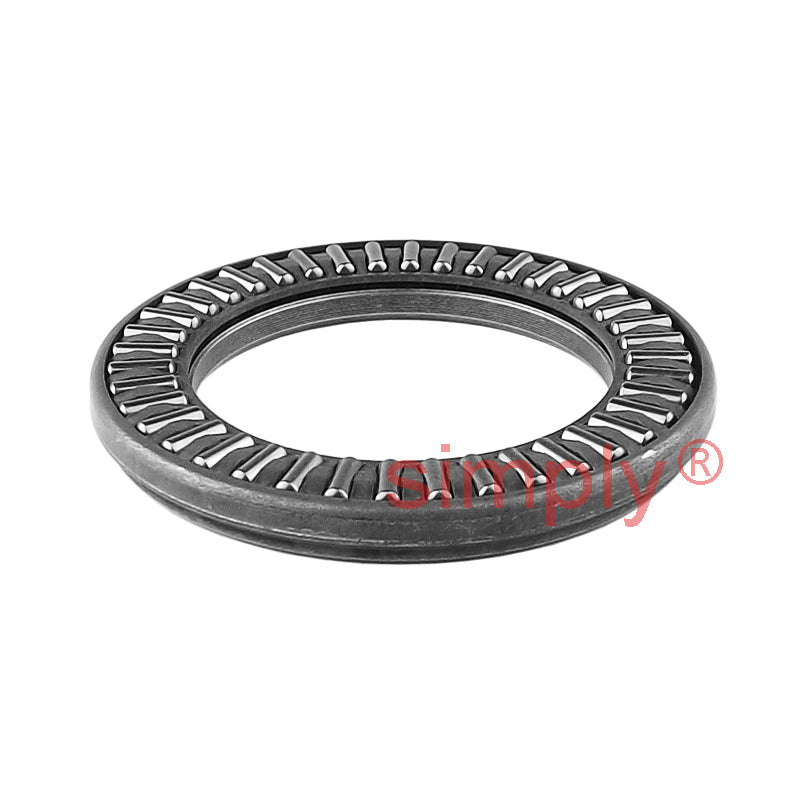

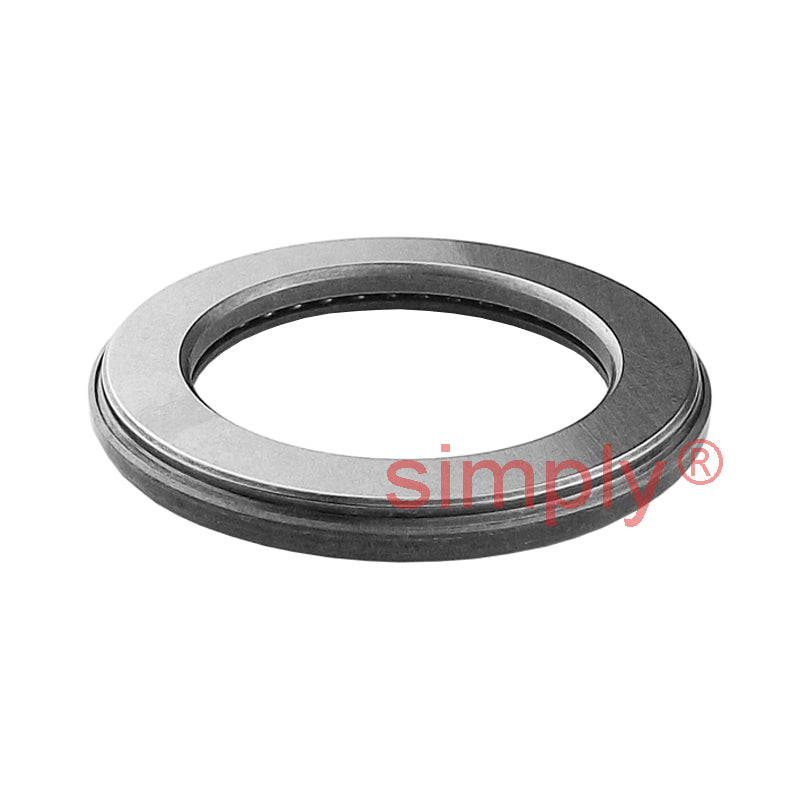

Nadella AX11140180 Thick Needle Roller Thrust Bearing 140x180x11mm Allow 2-3
Nadella AX11140180 Thick Needle Roller Thrust Bearing 140x180x11mm Allow 2-3
Out of stock
Share this product
Description
Description
AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 180mm
- Width:
- 11mm
Technical
Technical
| Dc1 | 140mm |
|---|---|
| D | 180mm |
| B1 | 11mm |
| Eb | 145mm |
| Ea | 171mm |
| Dynamic load | 111 kN |
| Static load | 770 kN |
| Speed rating in oil | 1600 rpm |
| Mass | 0.67 kg |
