SKU: AX1022-MB

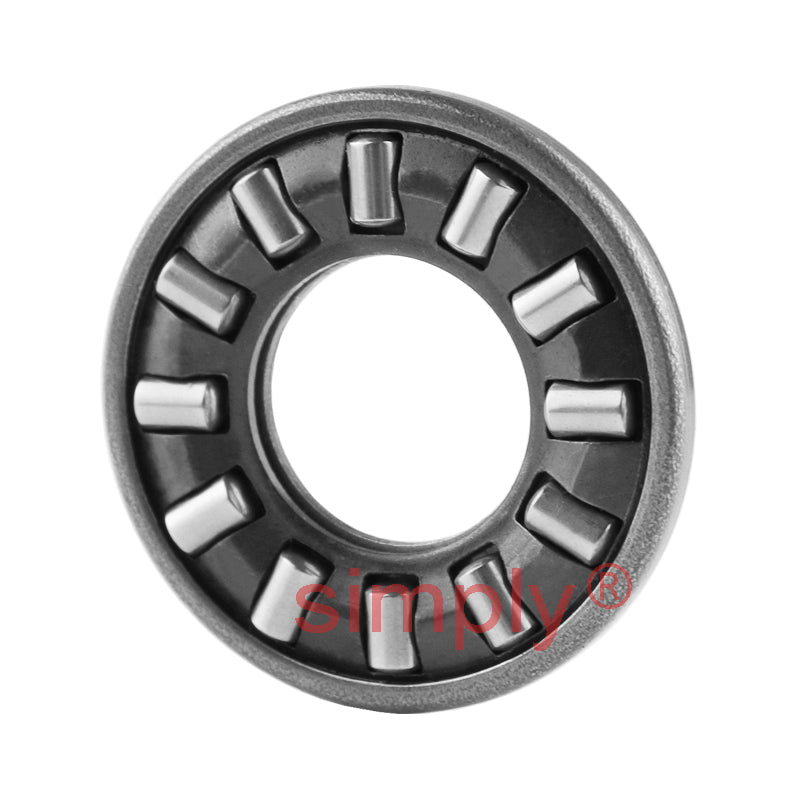

Major Brand AX1022 Thin Needle Roller Thrust Bearing 10x22x2.8mm
Major Brand AX1022 Thin Needle Roller Thrust Bearing 10x22x2.8mm
Regular price
€13,09
ex VAT
Regular price
Sale price
€13,09
ex VAT
In stock
Price Break
10+
€9,97
19+
€9,41
29+
€9,30
39+
€9,18
49+
€9,07
74+
€8,96
99+
€8,40
199+
€8,29
249+
€8,18
499+
€8,06
999+
€7,84
Share this product
Description
Description
AX Thin Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are manufactured with an integrated washer and a uniform cage that reliably guides many needle rollers. The rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevent any edge damage occurrence. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 2.8mm
Technical
Technical
| Dc1 | 10mm |
|---|---|
| D | 22mm |
| B1 | 2.8mm |
| Eb | 12mm |
| Ea | 18.6mm |
| Dynamic load | 5 kN |
| Static load | 10.9 kN |
| Speed rating in oil | 15500 rpm |
| Mass | 0.004 kg |
