SKU: ASFD206-NTN

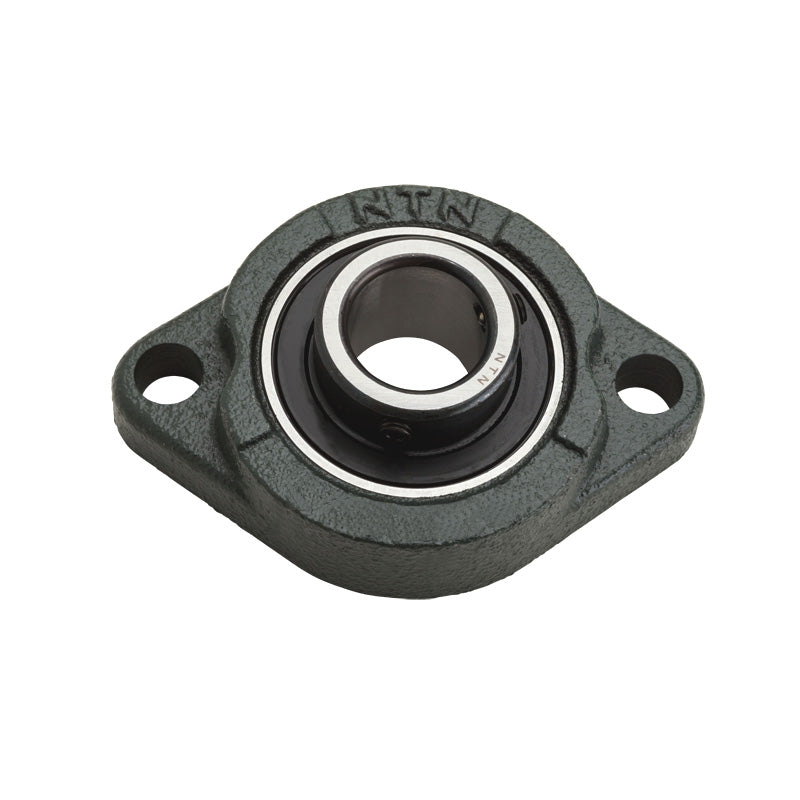

NTN ASFD206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
NTN ASFD206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
€36,56
ex VAT
Regular price
Sale price
€36,56
ex VAT
In stock
Price Break
10+
€32,54
19+
€30,71
29+
€30,34
39+
€29,98
49+
€29,61
74+
€29,25
99+
€27,42
199+
€27,05
249+
€26,69
499+
€26,32
999+
€25,59
Couldn't load pickup availability
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- ASFD
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H | 113mm |
| J | 90mm |
| A<sub>2</sub> | 12mm |
| A | 21mm |
| N | 12mm |
| L | 84mm |
| A<sub>0</sub> | 33mm |
| B | 29mm |
| S | 8mm |
| Fixing bolt | M10 |
| Mass | 0.8 kg |
