SKU: AS85110-EU

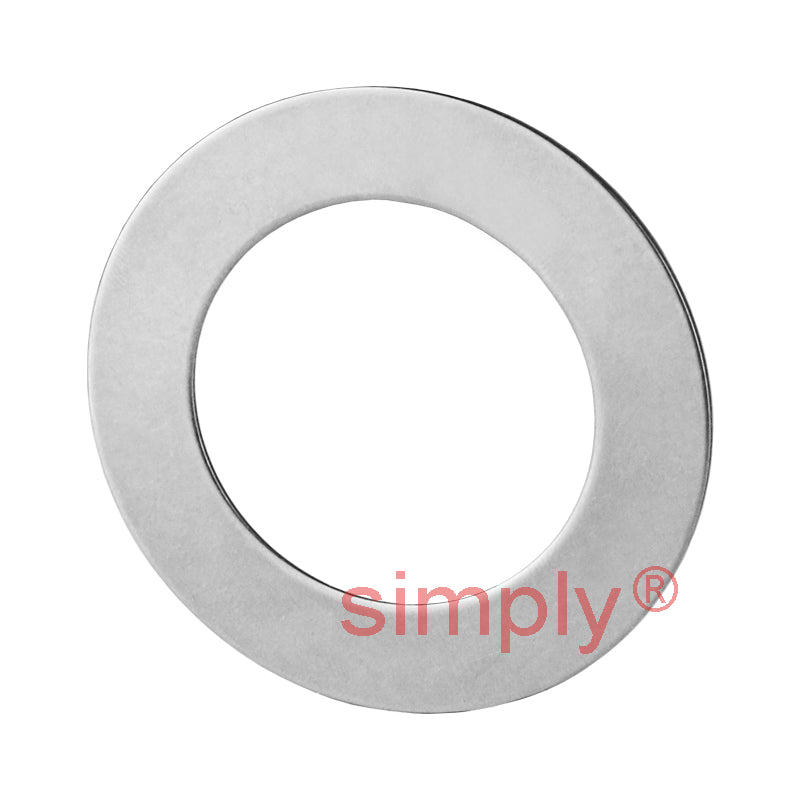

AS85110 Budget Thrust Washer Series AS 85x110x1mm
AS85110 Budget Thrust Washer Series AS 85x110x1mm
Regular price
€7,07
ex VAT
Regular price
Sale price
€7,07
ex VAT
In stock
Price Break
10+
€6,29
19+
€5,94
29+
€5,87
39+
€5,80
49+
€5,73
74+
€5,66
99+
€5,30
199+
€5,23
249+
€5,16
499+
€5,09
999+
€4,95
Couldn't load pickup availability
Description
Description
|
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 1mm
Technical
Technical
| d | 85mm |
|---|---|
| d1 | 110mm |
| D | 110mm |
| D1 | 87mm |
| B | 1mm |
| r1r2 | 1mm |
| Material | Spring Steel (AISI 1074 / SAE 5165) |
| Weight | 160 g |
