SKU: AN21-EU

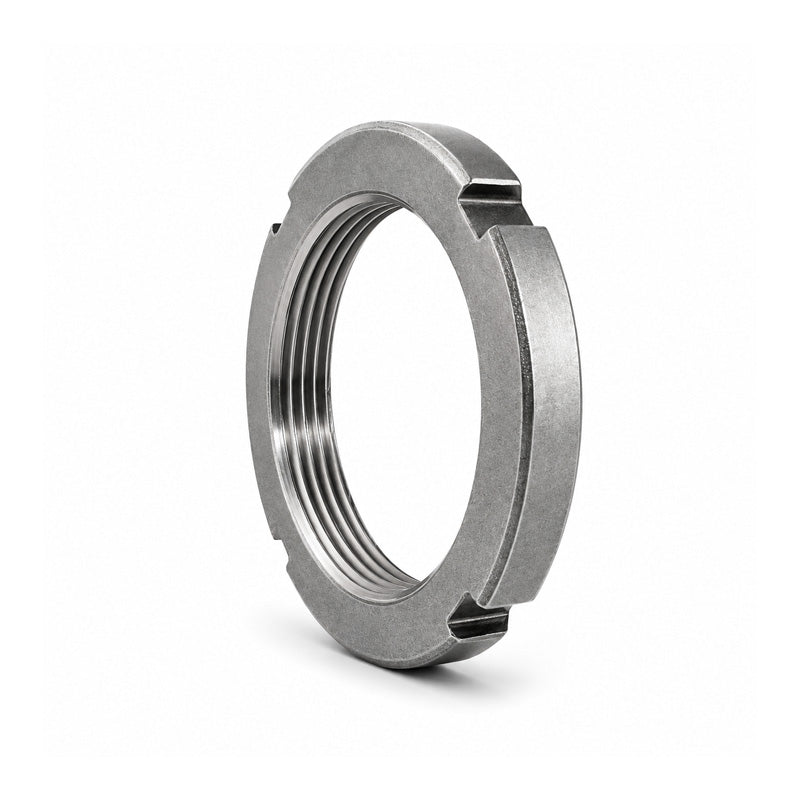

Premier Budget AN21 Imperial Lock Nut (Lock Washer Type) 4.122x5.443x0.76 inch
Premier Budget AN21 Imperial Lock Nut (Lock Washer Type) 4.122x5.443x0.76 inch
Regular price
€20,15
ex VAT
Regular price
Sale price
€20,15
ex VAT
In stock
Price Break
3+
€15,35
5+
€14,48
9+
€14,31
19+
€14,14
49+
€13,97
74+
€13,79
99+
€12,93
199+
€12,76
249+
€12,59
499+
€12,42
999+
€12,07
Share this product
Description
Description
Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft or sleeve nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 104.7mm = 4.122 inch
- Outside Diameter:
- 138.25mm = 5.443 inch
- Width:
- 19.3mm = 0.76 inch
Technical
Technical
| G | 4.122 inch |
|---|---|
| Threads per inch | 12 |
| d<sub>1</sub> | 5 inch |
| d<sub>3</sub> max | 5.443 inch |
| B | 0.76 inch |
| b | 0.485 inch |
| h | 0.198 inch |
| Static axial load carrying capacity | 62947 lbf |
| Mass | 0.9253 kg |
| Associated spanner | <a href="advanced_search_result.php?search_in_description=1&keywords=HN21-22+lock+spanner">HN21-22 [Click Here]</a> |
| Associated locking device | <a href="advanced_search_result.php?search_in_description=1&keywords=W21+lock+tab+washer">W21 [Click Here] |
