SKU: 94687/94113B-TIM

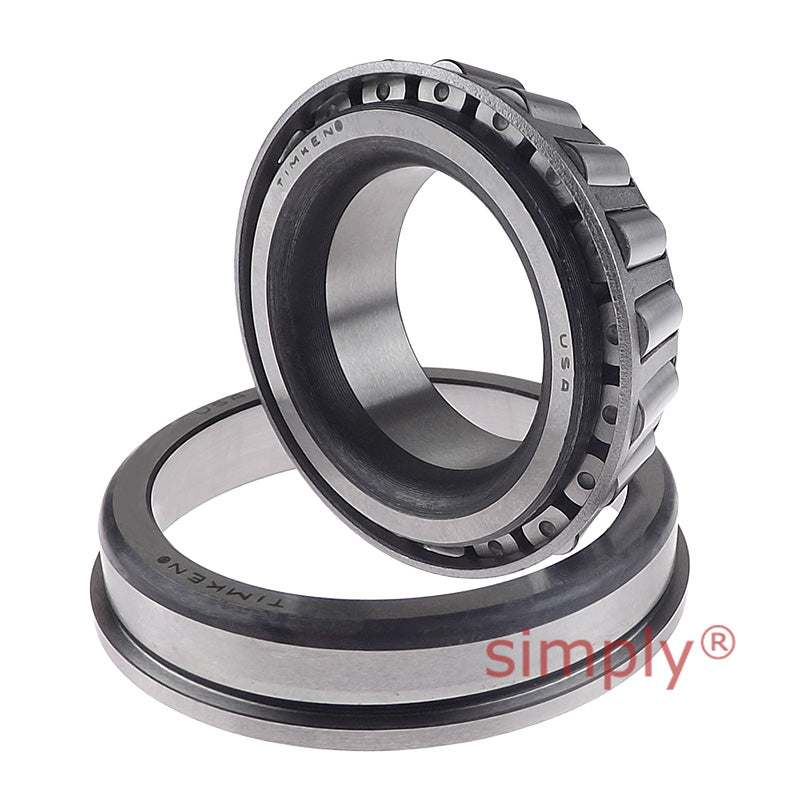

Timken 94687/94113B TSF Single-Row Taper Roller Bearing 6.875x11.375x2.5 inch
Timken 94687/94113B TSF Single-Row Taper Roller Bearing 6.875x11.375x2.5 inch
Regular price
€6.283,02
ex VAT
Regular price
Sale price
€6.283,02
ex VAT
In stock
Price Break
10+
€4.785,14
20+
€4.516,31
30+
€4.462,55
40+
€4.408,78
50+
€4.355,02
75+
€4.301,25
100+
€4.032,42
200+
€3.978,66
250+
€3.924,89
500+
€3.871,13
1000+
€3.763,60
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 174.63mm = 6.875 (6-7/8) inch
- Outside Diameter:
- 288.93mm = 11.375 (11-3/8) inch
- Width:
- 63.5mm = 2.5 (2-1/2) inch
Technical
Technical
| d | 174.625mm = 6.875 inch |
|---|---|
| D | 288.925mm = 11.375 inch |
| T1 | 26.988mm = 1.0625 inch |
| Dynamic (1) C1 | 611000N |
| Factors (5) e | 0.47 |
| Factors (5) Y | 1.28 |
| Dynamic (2) C90 | 159000N |
| Dynamic (2) Ca90 | 127000N |
| Factors (5) K | 1.25 |
| Static Co | 1070000N |
| Bearing B | 63.5mm = 2.5 inch |
| Bearing C | 47.625mm = 1.875 inch |
| Bearing a(3) | -0.8mm = -0.03 inch |
| Bearing D1 | 299.933mm = 11.8084 inch |
| Bearing C2 | 11.112mm = 0.4375 inch |
| Shaft max shaft fillet radius R(4) | 7mm = 0.28 inch |
| Shaft backing shoulder diameter da | 193mm = 7.6 inch |
| Shaft backing shoulder diameter db | 204mm = 8.03 inch |
| Housing backing shoulder diameter Da | 272mm = 10.71 inch |
| G1 | 692 |
| G2 | 93.8 |
| Cg | 0.1287 |
