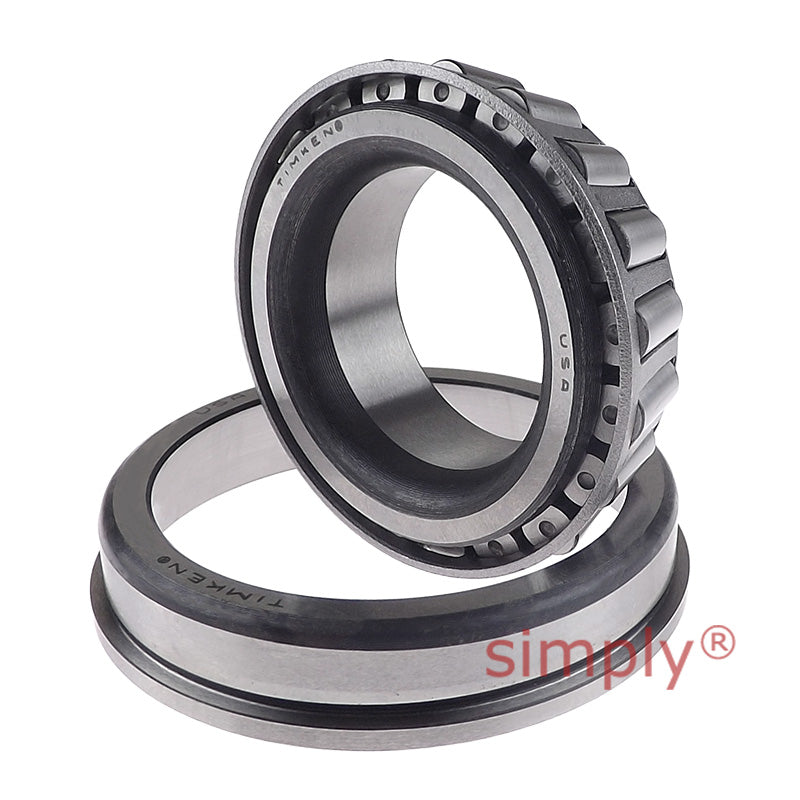

Timken 93708/93125B TSF Single-Row Taper Roller Bearing 7.0856x12.5x2.5 inch
Timken 93708/93125B TSF Single-Row Taper Roller Bearing 7.0856x12.5x2.5 inch
Regular price
€6.385,18
ex VAT
Regular price
Sale price
€6.385,18
ex VAT
In stock
Price Break
10+
€4.862,95
20+
€4.589,75
30+
€4.535,11
40+
€4.480,47
50+
€4.425,83
75+
€4.371,19
100+
€4.098,00
200+
€4.043,36
250+
€3.988,72
500+
€3.934,08
1000+
€3.824,80
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 179.97mm = 7.086 inch
- Outside Diameter:
- 317.5mm = 12.5 (12-1/2) inch
- Width:
- 63.5mm = 2.5 (2-1/2) inch
Technical
Technical
| d | 179.975mm = 7.0856 inch |
|---|---|
| D | 317.5mm = 12.5 inch |
| T1 | 28.575mm = 1.125 inch |
| Dynamic (1) C1 | 677000N |
| Factors (5) e | 0.52 |
| Factors (5) Y | 1.15 |
| Dynamic (2) C90 | 175000N |
| Dynamic (2) Ca90 | 157000N |
| Factors (5) K | 1.12 |
| Static Co | 1290000N |
| Bearing B | 63.5mm = 2.5 inch |
| Bearing C | 46.038mm = 1.8125 inch |
| Bearing a(3) | 7.9mm = 0.31 inch |
| Bearing D1 | 328.523mm = 12.934 inch |
| Bearing C2 | 11.112mm = 0.4375 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 204mm = 8.03 inch |
| Shaft backing shoulder diameter db | 209mm = 8.23 inch |
| Housing backing shoulder diameter Da | 300mm = 11.81 inch |
| G1 | 912 |
| G2 | 126 |
| Cg | 0.146 |
