SKU: 89430M.MB

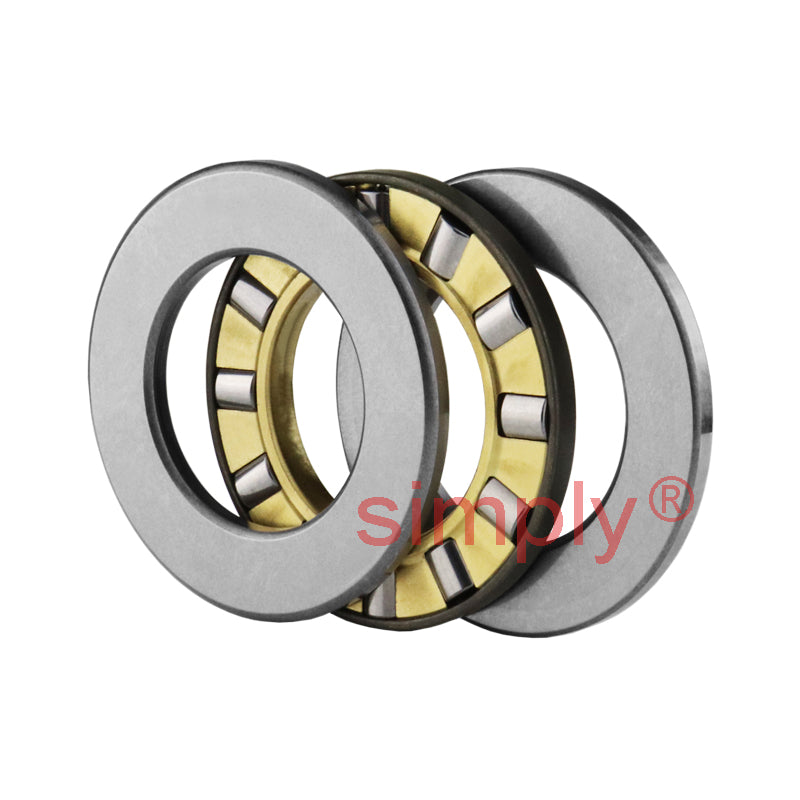

Major Brand 89430M Cylindrical Roller Thrust Bearing with Brass Cage 150x300x90mm
Major Brand 89430M Cylindrical Roller Thrust Bearing with Brass Cage 150x300x90mm
Regular price
€3.154,77
ex VAT
Regular price
Sale price
€3.154,77
ex VAT
In stock
Price Break
10+
€2.402,67
19+
€2.267,69
29+
€2.240,69
39+
€2.213,69
49+
€2.186,70
74+
€2.159,70
99+
€2.024,72
199+
€1.997,72
249+
€1.970,73
499+
€1.943,73
999+
€1.889,74
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 300mm
- Width:
- 90mm
Technical
Technical
| d | 150mm |
|---|---|
| D | 300mm |
| H | 90mm |
| Dynamic load C | 1250 kN |
| Static load Co | 5600 kN |
| Fatigue load limit Pu | 480 kN |
| Min load factor A | 2.5 |
| Reference speed | 500 rpm |
| Limiting speed | 1000 rpm |
| Cage reference | K89430M |
| Weight | 32 kg |
