SKU: 7913CSN24TRDULP3-RHP

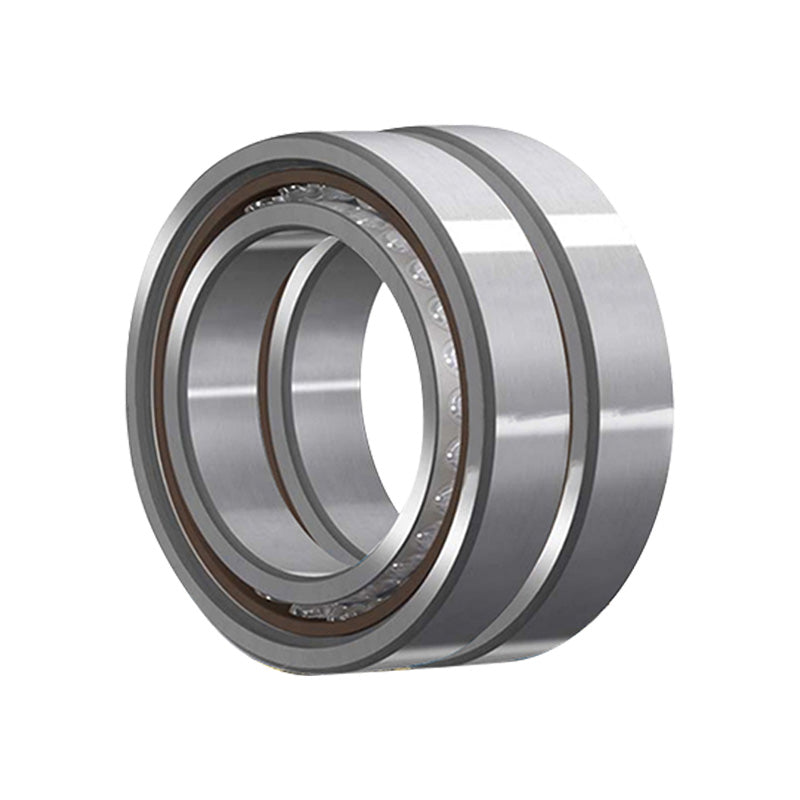

RHP 7913CSN24TRDULP3 Super Precision Angular Contact Spindle Bearing 65x90x13mm (Set of 2)

RHP 7913CSN24TRDULP3 Super Precision Angular Contact Spindle Bearing 65x90x13mm (Set of 2)
Regular price €1.238,80 ex VAT
Regular price Sale price €1.238,80 ex VAT
Sale Sold out

In stock

Price Break
3+ €943,47
5+ €890,46
10+ €879,86
25+ €869,26
49+ €858,66
74+ €848,06
99+ €795,06
199+ €784,46
249+ €773,86
499+ €763,25
999+ €742,05
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 65mm
D 90mm
B 13mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> -21.2Kn
C<sub>or</sub> -20.5kN
Axial load Kn 14.8 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.7
Effective diameter 16.9mm
Max speed in grease 19400 rpm
Max speed in oil 29500 rpm
--- Fitting dimensions
d<sub>a min</sub> 71mm
D<sub>a max</sub> 84mm
D<sub>b max</sub> 85mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.372kg
