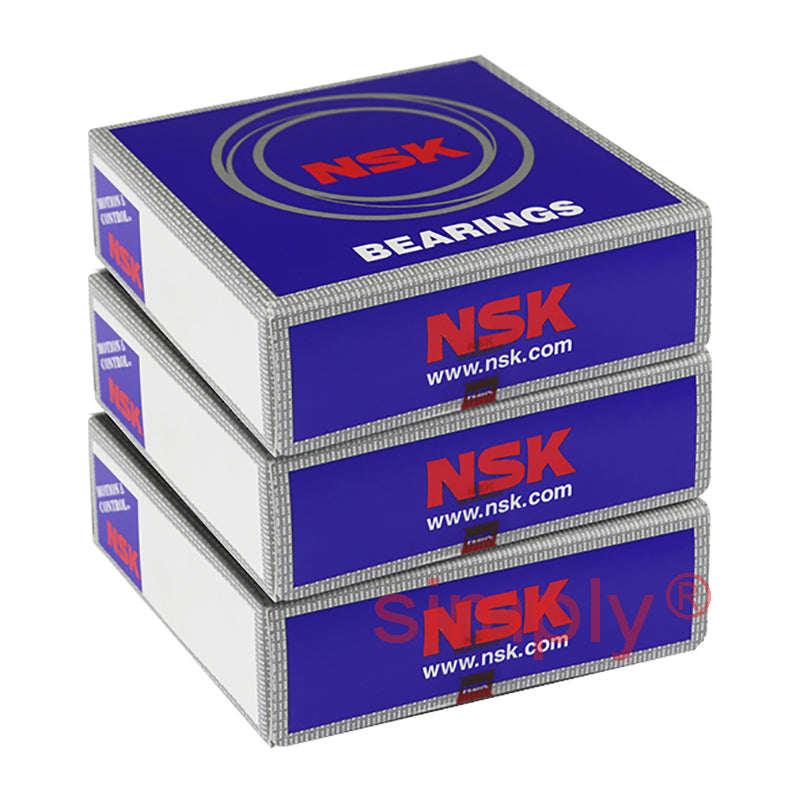

NSK 7907A5TRDUDMP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 3)

NSK 7907A5TRDUDMP3 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 3)
Regular price €415,27 ex VAT
Regular price Sale price €415,27 ex VAT
Sale Sold out

In stock

Price Break
3+ €316,27
5+ €298,50
10+ €294,95
25+ €291,39
49+ €287,84
74+ €284,29
99+ €266,52
199+ €262,96
249+ €259,41
499+ €255,86
999+ €248,75
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12Kn
C<sub>or</sub> 8.7kN
Axial load Kn 7.2 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 15.5mm
Max speed in grease 22300 rpm
Max speed in oil 33400 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.225kg
